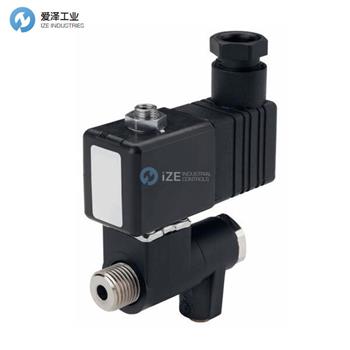

GF先導閥199 190 574技術參數
Compressed air connection P | NPT 1/8" |
Voltage | 110 V, 50-60 Hz |
Working connection (actuator) A | G1/8" |
Cable plug shape | C |
Order code | 199 190 547 |
GF先導閥PV94系列介紹
產品描述
PV94/PV95 Pilot閥是一款直動式柱塞閥。該3/2路電磁閥用于驅動單作用氣動執行器。PV94設計用于DN50以內的尺寸，PV95則適用于DN65-DN150。它通過班卓螺栓直接安裝在執行器上。
PV94 Pilot閥提供公稱直徑DN1.2，并有G?"、NPT1/8"或6mm氣源連接等不同變體，以及多種電壓選項。
PV95 Pilot閥提供公稱直徑DN2，具有G1/4"或NPT1/8"氣源連接的不同變體和多種電壓選擇。
優點/特性
直動式和緊湊的小型閥
便于直接連接氣動執行器
維護方便的手動操作
PV94：推桿式線圈系統
PV95：防振螺栓式線圈系統
Product description
The PV94/PV95 pilot valve is a direct-acting plunger valve. The 3/2-way solenoid valve is used to activate single-acting pneumatic actuators. The PV94 is designed for dimensions up to DN50, the PV95 for DN65-DN150. It is mounted directly on the actuator via a banjo bolt.
The PV94 pilot valve is available in nominal diameter DN1.2 and in variants with G?", NPT1/8" or with 6mm air connection and with different voltages.
The PV95 pilot valve is available in nominal diameter DN2 and in variants with G1/4" or with NPT1/8" air connection and with different voltages.
Benefits/features
Direct acting and compact small valve
Easy direct attachment to a pneumatic Actuator
Service-friendly manual operation
PV94: Push-over coil system
PV95: Vibration-proof, bolted coil system
GF先導閥其他常用型號：
GF 199 190 498
GF 199 190 499
GF 199 190 500
GF 199 190 501
GF 199 190 510
GF 199 190 511
GF 199 190 512
GF 199 190 513
GF 199 190 546
GF 199 190 547
GF 199 190 561
GF 199 190 571
GF 199 190 572
GF 199 190 573
GF 199 190 574
GF 199 190 532
GF 199 190 533
GF 199 190 534
GF 199 190 535
GF 199 190 554
GF 199 190 555
GF ball valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GF先導閥199 190 574的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GF products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.aalatcr.cn.
