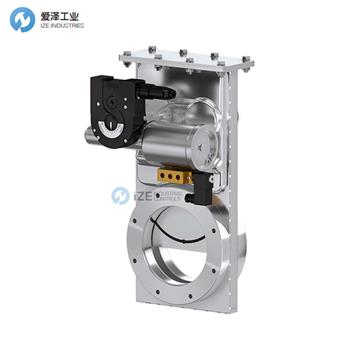

VAT閘閥14046-TE44技術參數
Technical data | |
Size | DN 200 (8") |
Flange | ASA-LP |
Material | Stainless steel |
Actuator | Pneumatic: double acting |
Position Indication Signal | Yes |
Solenoid | Yes |
Pressure Min. | 1 × 10-8 mbar |
Pressure Max. | 2.0 bar (abs) |
Conductance | 12200 ls?1 |
Differential Pressure on Plate | ≤ 2 bar |
Differential Pressure at opening | ≤ 0.03 bar |
Max. temperature solenoid | ≤ 50 °C |
Cylinder volume | 0.32 l |
Max. compressed air pressure | 7 bar / 102 psi |
Min. compressed air pressure | 4 bar / 58 psi |
Max. temperature position indicator | ≤ 80 °C |
Close open time | 2.5 s |
Weight | 35 kg / 77 lbs |
Max. Temperature Actuator | ≤ 50 °C |
Max. temperature valve body | ≤ 150 °C |
VAT閘閥14.0系列介紹
14.0 HV 閘閥系列專為在標準高循環真空工藝中實現可靠隔離而設計。它滿足了耐用性、模塊化和可維護性的標準要求，特別注重高正常運行時間和低擁有成本。
14.0 HV 閘閥配備了 VATLOCK 技術，該技術是專門為提供可靠密封而開發的，閘閥密封處沒有任何摩擦。由于在關閉端位置的機械鎖定，VATLOCK 機制還可以防止閥門故障。
14.0 已在各種工藝條件下的數千個苛刻應用中安裝，證明了其出色的可靠性。它已成為 DN 63 - 400 毫米（2.5 英寸 - 16 英寸）尺寸的任何高真空隔離要求的標準。
憑借其堅固且無潤滑劑的設計，它滿足了可靠的 HV 閘閥的所有要求。14.0 專為大量工藝循環而設計，確實樹立了標準。
14.0 具有各種驅動和法蘭連接設計選項，因此可以輕松集成到任何真空系統中。提供各種特殊選項，例如用于粗加工、排氣或儀表的端口，以及替代密封材料，以確保最佳地適合不同的應用。
The 14.0 HV Gate Valve series is designed for reliable isolation in standard high cycle vacuum processes. It addresses the standard requirements of durability, modularity and serviceability with a special focus on high uptime and low cost of ownership.
The 14.0 HV Gate Valve is equipped with VATLOCK technology which is specially developed to provide reliable sealing without any friction at the gate seal. The VATLOCK mechanism also prevents valve failures thanks to the mechanical lock-in at the closed end position.
Already installed in thousands of demanding applications under various process conditions, the 14.0 has proven its outstanding reliability. It has become the standard for any high vacuum isolation requirement in sizes from DN?63?–?400mm (2.5"?–?16").
With its robust and lubricant-free design, it meets all of the requirements for a reliable HV Gate Valve. Designed for an especially high number of process cycles, the 14.0 really does set the standard.
The 14.0 has various actuation and flange connection design options so it can be easily integrated into any vacuum system. A wide range of special options are available such as ports for roughing, venting or gauges, as well as alternative sealing materials to ensure optimal fit for different applications.
VAT閘閥14.0系列其他常用型號：
VAT 14036-CE01
VAT 14036-CE48
VAT 14036-JE48
VAT 14036-PE24
VAT 14036-TE28
VAT 14036-UE44
VAT 14038-CE44
VAT 14038-PE14
VAT 14040-CE01
VAT 14040-JE01
VAT 14040-PE24
VAT 14040-TE28
VAT 14040-UE48
VAT 14044-CE08
VAT 14044-JE24
VAT 14044-PE48
VAT 14046-CE08
VAT 14046-JE01
VAT 14046-PE48
VAT 14046-TE44
VAT 14046-UE48
VAT GATE VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于VAT閘閥14046-TE44-0006的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for VAT products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.aalatcr.cn.
VAT閘閥14.0系列14046-TE44-0006技術參數及介紹
