APPLIED MOTION驅動器STAC6-Q-220技術參數
Supply Voltage | 94-265 VAC |
Supply Voltage Type | AC |
Control Modes | Streaming Commands |
Output Current | 0.500 - 3.200 A/phase |
Encoder Feedback | Yes |
Step Resolution | Full |
Idle Current Reduction | 0-100% |
Setup Method | Software setup |
Digital Inputs | 7 |
Digital Outputs | 3 |
Operating Temperature Range | -40 to 131 °F |
Ambient Temperature Range | 104 to 131 °F |
Ambient Humidity | 90% max, non-condensing |
Status LEDs | 1 red, 1 green |
Circuit Protection | Short circuit, Over-voltage, Under-voltage, Over-temp |
Dimensions | 6.35 x 4.66 x 2.31 in |
Output Current Range, Continuous | 0.000 - 3.900 A/phase |
Weight | 32 oz |
Legacy Part Number | 5000-122 |
Analog Inputs | 1 differential or 2 single-ended |
Communication Protocols | RS-232 |
APPLIED MOTION驅動器STAC6-Q-220產品介紹

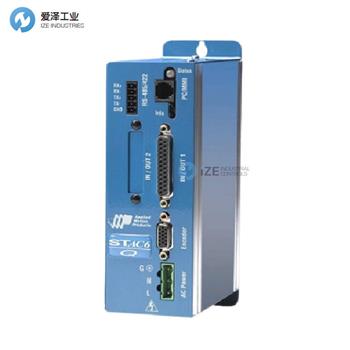

STAC6-Q-220 AC 高級微步進驅動器，帶 Q 編程和編碼器輸入
STAC6-Q-220 步進驅動器是一款功能強大的兩相雙極步進電機驅動器，適用于高速、高扭矩應用。它采用電流控制，旨在在寬速度范圍內實現最佳平滑度。抗共振、扭矩紋波平滑和微步進協同工作，將步進電機性能提升到新的高度。
STAC6-Q-220 采用單相 220 VAC 供電，向步進電機輸出高達 3.2 A/相（正弦峰值）的電流。它具有過壓、過溫和過流保護功能，并配有一組專門匹配的低損耗 NEMA 23 和 NEMA 34 框架步進電機。
特點
? 744 行存儲程序功能
? 使用模擬和數字參數進行數學計算
? 7 個數字輸入、3 個數字輸出，全部光學隔離
? 2 個模擬輸入，+/-10 伏范圍
? 帶編碼器反饋的失速預防/檢測
? 先進的反共振算法
? 扭矩波動平滑
? 微步進至 51,200 步/轉
? 空閑電流降低
? 32 軸多點功能
? 包括 RS-232 電纜和所有配套連接器
? 與許多第三方 HMI 兼容
? 能夠適度控制所有 SERVO? 驅動器
STAC6-Q-220 AC Advanced Microstep Drive w/ Q Programming & Encoder Input
The STAC6-Q-220 stepper drive is a powerful, two-phase, bipolar step motor drive for high-speed, high-torque applications. It employs sophisticated current control designed for optimal smoothness over a wide speed range. Anti-resonance, torque ripple smoothing, and microstepping work together to bring step motor performance to a new high.
The STAC6-Q-220 operates on single-phase 220 VAC and outputs up to 3.2 A/phase (peak-of-sine) to the step motor. It features over-voltage, over-temperature, and over-current protection and is complemented by a specially matched set of low-loss NEMA 23 and NEMA 34 frame step motors.t
FEATURES
? 744 lines of stored program capability
? Math calculations using analog and digital parameters
? 7 digital inputs, 3 digital outputs, all optically isolated
? 2 analog inputs, +/-10 volt range
? Stall prevention/detection with encoder feedback
? Advanced anti-resonance algorithm
? Torque ripple smoothing
? Micro stepping to 51,200 steps/rev
? Idle current reduction
? 32 axis multi-drop capability
? RS-232 cable and all mating connectors are included
? Compatible with many 3rd party HMIs
? Capable of all SERVO? drive control modest
