HONEYWELL壓差開關DPSN系列技術參數
Specifications | |
Maximum pressure: | 10000Pa |
Accuracy: | ≤15% |
Pressure medium: | Air, non-flammable and non-corrosive gas |
Pressure connection: | 2 plastic conduits, 6mm diameter |
Switch capacity: | 1.5A, (0.4A)/250Vac |
Mechanical life: | >1 million times |
Permitted operating temperature: | -20℃...+85℃ |
Permitted storage temperature: | -40℃…+85℃ |
Electrical connection: | AMP connector or screw terminal |
Membrane material: | Silicon |
Conduit port: | CM=M20 x 1.5 |
Protection level: | IP54 |
Certification: | CE |
Included accessories: | Pressure conduit 2 pcs |

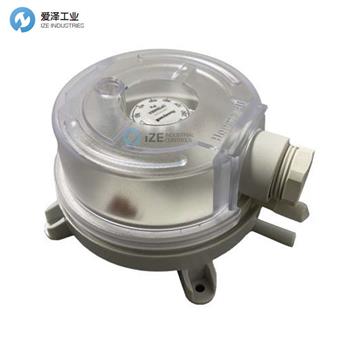

HONEYWELL壓差開關DPSN系列介紹
DPSN系列壓差開關應用于監視風道中過濾網、風機和空氣流的狀態。該產品還可根據現場需要，直觀的旋轉設定旋鈕到所需檢測的壓力值，并保證壓力測量值的準確度。
DPSN series differential pressure switches are used to monitor the status of filters, fans and air flows in the air duct. This product can also intuitively rotate the setting knob to the required pressure value according to on-site needs and ensure the accuracy of the pressure measurement value.
HONEYWELL壓差開關DPSN系列其他常用型號：
HONEYWEL DPSN200A
HONEYWEL DPSN400A
HONEYWEL DPSN1000A
HONEYWEL DPSN2500A
