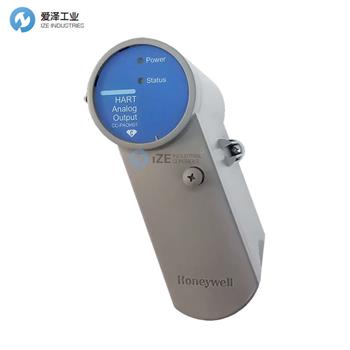

HONEYWELL模擬輸出模塊CC-PAOH01技術參數
Input / Output Model | CC-PAOH01 - High-Level Analog Output with HART |
IOTA Models | CC-TAOX01 Non-Redundant 6” |
Output Type | 4-20 mA |
Output Channels | 16 |
Output Ripple | < 100 mV peak-to-peak at power line frequency, across 250 Ω load |
Output Temperature Drift | 0.005% of Full Scale/°C |
Output Readback Accuracy | ±4% of Full Scale |
Output Current Linearity | ± 0.05% of Full Scale nominal |
Resolution | ± 0.05% of Full Scale |
Calibrated Accuracy | ± 0.35% of Full Scale (25oC) including linearity |
Directly Settable Output Current Range | 0 mA, 2.9 mA to 21.1 mA |
Maximum Resistive Load (24 V supply = 22 VDC through 28 VDC) | 800 ohms |
Maximum Output Compliant Voltage (24 V supply = 22 VDC through 28 VDC) | 16 V |
Maximum Open Circuit Voltage | 22 V |
Response Time (DAC input code to output) | settles to within 1% of final value within 80 ms |
Gap (0 mA) of Output to Field on Switchover | 10 ms maximum (applies to Redundancy only) |
HONEYWELL模擬輸出模塊CC-PAOH01產品介紹
模擬輸出 (AO) 模塊向執行器和記錄/指示設備提供高電平恒定電流。
特點
? 廣泛的自診斷功能
? 可選冗余
? 支持 HART 的多變量儀器
? 多個調制解調器用于快速收集控制變量
? 可按通道配置安全狀態 (FAILOPT) 行為
? 輸出回讀和差異報警
? 非易燃輸出
The Analog Output (AO) Module delivers high-level constant current to actuators and recording/indicating devices.
Notable Features
? Extensive self-diagnostics
? Optional redundancy
? HART-capable, multivariable instruments
? Multiple modems for fast collection of control variables
? Safe-state (FAILOPT) behaviors configurable on a per channel basis
? Output read-back and alarm on discrepancy
? Non-incendive output
HONEYWELL模塊C系列其他常用型號：
HONEYWELL CC-PAIH01
HONEYWELL CC-PAIH02
HONEYWELL CC-PAIX01/02
HONEYWELL CC-PAIH51
HONEYWELL CC-PAIN01
HONEYWELL CC-PPIX01
HONEYWELL CC-PAIM01
HONEYWELL CC-PAIL51
HONEYWELL CC-PAOH01
HONEYWELL CC-PAOX01
HONEYWELL CC-PAOH51
HONEYWELL CC-PAON01
HONEYWELL CC-PDIL01
HONEYWELL CC-PDIS01
HONEYWELL CC-PDIL51
HONEYWELL CC-PDIH01
HONEYWELL CC-PDOB01
HONEYWELL ANALOG OUTPUT (AO) MODULE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HONEYWELL模擬輸出模塊CC-PAOH01的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HONEYWELL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.aalatcr.cn.
