AMCI接口模塊7264技術參數
Specifications | |
AMCI Module | 7264 |
PLC platform | 1756 ControlLogix |
Position sensor | SSI |
Maximum resolution | transducer dependent |
Number of channels | (4) channels |
Number of I/O | 4 in direct: used for capturing scaled position data |
Transducer compatibility | AMCI DC25 SSI encoder |
Laser sensor compatibility | Leuze AMS200 optical laser measurement system |
Optical barcode position system compatibility | Leuze BPS37 optical barcode positioning system |
Velocity update time | 160ms or 60ms |
DC supply requirements | 550mA @5Vdc |
Removable terminal block | Not included with the 7264 module. Order the 1756-TBCH (36 position cage clamp) or the 1756-TBS6H (36 position spring clamp) from your Rockwell Automation supplier. |
Cable requirements | sensor dependent |
Required hardware | External power supply for sensor and latch inputs |
Optional hardware | na |
AMCI模塊7264產品介紹

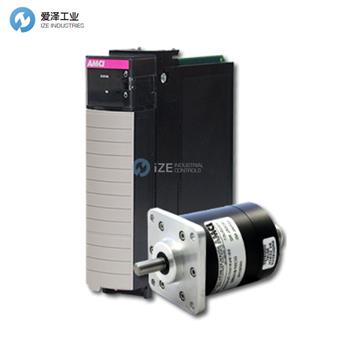

7262 & 7264 CONTROLLOGIX SSI INTERFACE MODULE
AMCI developed the 7260 series modules for applications requiring a direct interface to most sensors that output SSI data.
The resolution of the ControlLogix SSI interface modules are only limited by the resolution of the position sensor used. Additional features include: position preset, count direction, position scaling, and latch inputs that are used to capture the scaled position data.
These modules also incorporate fault diagnostics that constantly monitor system integrity and report any errors to the PLC
7262 & 7264 CONTROLLOGIX SSI 接口模塊
AMCI為需要與大多數輸出SSI數據的傳感器直接接口的應用開發了7260系列模塊。
ControlLogix SSI 接口模塊的分辨率僅受所使用的位置傳感器的分辨率的限制。其他功能包括：位置預設、計數方向、位置縮放和用于捕獲縮放位置數據的鎖存輸入。
這些模塊還集成了故障診斷功能，可以持續監控系統完整性并向PLC報告任何錯誤
AMCI接口模塊其他常用型號：
AMCI 7252
AMCI 7662
AMCI 7272
AMCI 7262
AMCI 7264
AMCI 7161
AMCI 7162
AMCI Resolver Interface Module NEW + ORIGINAL+ ONE YEAR WARRANTY
