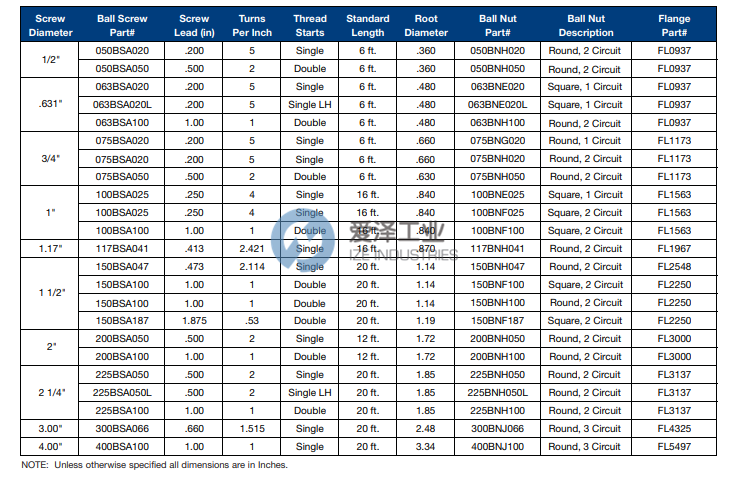

DUFF-NORTON滾珠絲杠400系列產品參數
Screw Diameter | 4" |
Acme Screw Part# | 400BSA100 |
Screw | 1 |
Turns Per Inch | 1 |
Thread Starts | Single |
Standard Length | 20 ft. |
Root Diameter | 3.34 |
Acme Nut Part# | 400BNJ100 |
Acme Nut Description | Round 3 Circuit |
Flange Part# | FL5497 |
DUFF-NORTON滾珠絲杠400系列介紹及選型
Performance – Excellent load ratings; Over 90% efficient with low torque and power requirements. Long and predictable life ratings.
Quality – Excellent quality, all screws are precision rolled, heattreated, inspected, and then manganese phosphate or black oxide coated. Good lead accuracy.
System Integration – Duff-Norton can provide you with an entire screw and nut system: mounting components, drive components, controls, and protective coverings.
性能–出色的額定載荷；低扭矩和低功率要求時，效率超過90％。壽命長且可預測。
質量–優異的質量，所有螺釘均經過精密軋制，熱處理，檢查，然后涂有磷酸錳或氧化黑。引線精度好。
系統集成– Duff-Norton可提供整個螺釘和螺母系統：安裝組件，驅動器組件，控件和保護套。

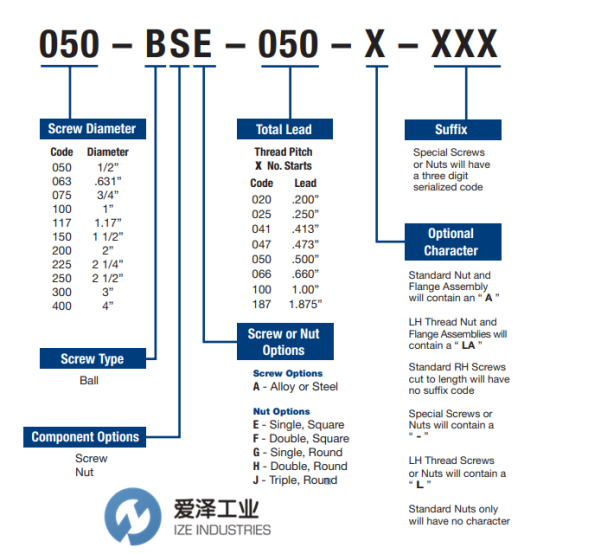

DUFF-NORTON滾珠絲杠400系列其他常見型號：
DUFF-NORTON 050BSA020
DUFF-NORTON 050BNH020
DUFF-NORTON 050BSA050
DUFF-NORTON 050BNH050
DUFF-NORTON 063BSA020
DUFF-NORTON 063BNE020
DUFF-NORTON 063BSA020L
DUFF-NORTON 063BNE020L
DUFF-NORTON 063BSA100
DUFF-NORTON 063BNH100
DUFF-NORTON 075BSA020
DUFF-NORTON 075BNG020
DUFF-NORTON 075BSA020
DUFF-NORTON 075BNH020
DUFF-NORTON 075BSA050
DUFF-NORTON 075BNH050
DUFF-NORTON 100BSA025
DUFF-NORTON 100BNE025
DUFF-NORTON 100BSA025
DUFF-NORTON 100BNF025
DUFF-NORTON 100BSA100
DUFF-NORTON 100BNF100
DUFF-NORTON 117BSA041
DUFF-NORTON 117BNH041
DUFF-NORTON 150BSA047
DUFF-NORTON 150BNH047
DUFF-NORTON 150BSA100
DUFF-NORTON 150BNF100
DUFF-NORTON 150BSA100
DUFF-NORTON 150BNH100
DUFF-NORTON 150BSA187
DUFF-NORTON 150BNF187
DUFF-NORTON 200BSA050
DUFF-NORTON 200BNH050
DUFF-NORTON 200BSA100
DUFF-NORTON 200BNH100
DUFF-NORTON 225BSA050
DUFF-NORTON 225BNH050
DUFF-NORTON 225BSA050L
DUFF-NORTON 225BNH050L
DUFF-NORTON 225BSA100
DUFF-NORTON 225BNH100
DUFF-NORTON 300BSA066
DUFF-NORTON 300BNJ100
DUFF-NORTON 400BSA100
DUFF-NORTON 400BNJ100
DUFF-NORTON Ball Screws NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DUFF-NORTON滾珠絲杠400BNJ100的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DUFF-NORTON products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.aalatcr.cn.
DUFF-NORTON滾珠絲杠400BNJ100產品參數
