規格描述

MAVILOR伺服電機MS020.040.0G09.Z3技術參數

	MSS-2
RATED SPEED	3,000rpm
RATED VOLTAGE 15%	39.4V
RATED CURRENT	6.5A
RATED OUTPUT POWER (1	190.3W
EFFICIENCY	74%
RATED TORQUE	0.6Nm
MAXIMUM TORQUE 121	3.6Nm
MAXIMUM SPEED (3)	7,000rpm
EMF CONSTANT⊥5%	10.4V/1000 rpm
TORQUE CONSTANT 15%	0.099Nm/A
FRICTION TORQUE	0.03Nm
DAMPING CONSTANT	0.003Nm/1000 rpm
TERMINAL RESISTANCE (25 C)	1Ω
ARMATURE INDUCTANCE	<102μH
INERTIA	0.15kg m2103
MECHANICALTIME CONSTANT	14.38ms
TRANSITORY POWER	89kW/s
THERMALTIME CONSTANT ROTORTO HOUSING	170s
THERMALTIME CONSTANT 1 HOUSINGTO AMBIENT	1,700s
THERMAL RESISTANCE ROTORTO HOUSING	0.8°CW
THERMAL RESISTANCE 1 HOUSINGTO AMBIENT	0.5°CW
RADIAL LOAD (at mid-length of shaft)	200N
AXIAL LOAD	150N
MASS (Only motor. No options)	3.3kg
	300x300x10
	3
	9,000

產品介紹

愛澤工業（ize-industries）并不是本網站所列所有產品的授權代理商或經銷商。本網站使用的所有產品名稱，商標，品牌等均屬于各自品牌廠家所有。本網站在產品或圖片描述中，出現具有這些名稱，商標，品牌等信息的產品僅用于識別目的，并非旨在表明任何與持有者的從屬及授權關系。

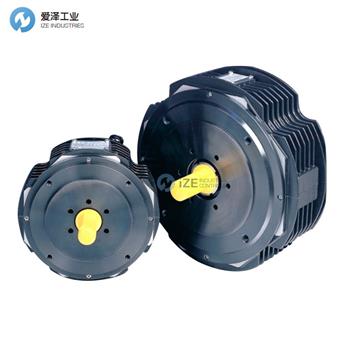

MAVILOR伺服電機MSS系列介紹

MSS系列

MAVILOR的軸向氣隙盤臂電機特別適用于高響應伺服驅動。高平穩的扭矩與慣性比，低速下無鎖定扭矩控制使得MAVILOR成為最嚴格應用的首選電機。

MAVILOR MSS系列伺服電機在功率與重量及體積比方面提高了20%，在功率速率和加速能力上相比之前的設計提高了20%。

采用無鐵轉子的設計，這些工業強度的電機具有極長的刷子壽命和高效能。

MAVILOR MSS系列電機在電機結構中集成了測速儀和安全保持制動器選項，并且在許多情況下，其長度僅為同等額定常規電機的一半。

額定轉速達到6000 RPM。

緊湊長度。

零鎖定。

加速扭矩可達額定值的10倍。

MSS Series

MAVILOR’s axial air gap dish armature is specially suited for high response servo drives. High and smooth torque to inertia ratio, non cogging torque low speed velocity control makes MAVILOR the motor of choice for the most exacting applications.

The MAVILOR MSS Series servomotors provide a 20% increase in power to weight and volume ratios and a 20% increase in power rate and acceleration capability over previous designs.

Incorporating an ironless rotor design, these industrial strength motors have an extremely long brush life and high efficiency.

MAVILOR MSS Series motors incorporate options of tachometers and fail-safe holding brakes within the motor structure, and in many cases are half the length of equivalently rated conventional motors.

Ratings to 6,000 RPM.

Compact Length.

Zero Cogging.

Acceleration Torques to 10 x Rated.

MAVILOR伺服電機MSS系列其他常用型號：

MAVILOR MSS-2

MAVILOR MSS-4

MAVILOR MSS-6

MAVILOR MSS-8

MAVILOR MSS-12

MAVILOR MSS-22

MAVILOR MSS-35

MAVILOR MSS-45
