OLMEC液壓泵P801-30系列產品參數
TECHNICAL DATA | |
Model | P801-30 |
Pressure ratio | 1:30 |
Maximum nominal pressure | 210 |
Air pressure | 2 ÷ 7 bar |
Air consumption | 300 Nl/min |
Noise level | Noise measured at 1 meter 78 ÷ 80 dB |
Standard pump weight | 3,6 Kg |
Pump weight with tank | Lt 1,2 = 6 // Lt 3 = 7,5 // Lt 6 = 10 // Lt 10 = 11,5 Kg |
OLMEC液壓泵P801系列介紹
這是一款結構緊湊、占用空間極小的泵，使用2至7 bar壓縮空氣驅動，廣泛應用于不需要高油量輸出的系統供油領域。
該泵采用6種增壓比設計，最高可實現455 bar壓力，最大流量可達9.5升/分鐘。
安裝方式靈活，可通過專用支架垂直或水平安裝在墻上，亦可直接安裝在不同容量的油箱上。
在配置獨立油箱的場合，泵與油箱之間的高度差應盡量減小，以避免引液困難。

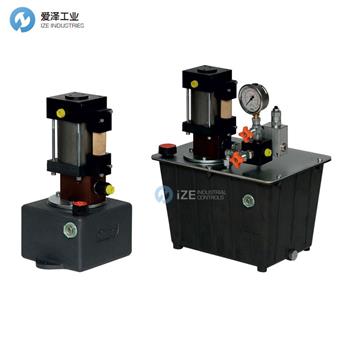

A compact pump with minimal space requirement, operating on compressed air with pressures from 2 to 7 bar, is widely used in the supply of systems where high oil delivery rates are not required.
Constructed with 6 intensification ratios, it is able to achieve pressures up to 455 bar and delivery rates up to 9.5 litres/min.
It can be mounted vertically or horizontally on walls with the aid of special brackets, or anged straight onto tanks of various capacities.
In installations with separate tanks, the difference in level between pump and tank should be minimal in order to avoid priming problems.
OLMEC液壓泵P801系列其他常見型號：
OLMEC P801-5
OLMEC P801-8
OLMEC P801-16
OLMEC P801-30-10-O
OLMEC P801-30
OLMEC P801-42
OLMEC P801-65
