DUPLOMATIC閥Z4M系列技術參數
PERFORMANCES | ||
Maximum operating pressure: | bar |
|
Maximum flow rate in the controlled line P | l/min | 80 |
Ambient temperature range | ℃ | -20/+60 |
Fluid temperature range | ℃ | -20/+80 |
Fluid viscosity range | cSt | 10 ÷ 400 |
Recommended viscosity | cSt | 25 |
Fluid contamination degree | According to ISO 4406:1999 class 20/18/15 | |
Mass | kg | 2.7 |
DUPLOMATIC閥Z4M系列介紹
Z4M閥是先導式減壓閥，其形狀為模塊化形式，安裝表面符合ISO 4401標準。
它降低了二次回路分支上的壓力，從而確保了受控壓力的穩定性，甚至改變了流經閥門的流量。
可以在ISO 4401-05方向電磁閥下快速組裝，而無需使用管道。
它隨附有一個內六角調節螺釘，鎖緊螺母和一個行程限制裝置，以實現最大程度的調節。
它有四個不同的壓力調節范圍，最高為320 bar。
The Z4M valve is a pilot operated pressure reducing valve shaped as modular version with mounting surface according to ISO 4401 standards.
It reduces pressure on secondary circuit branches, assuring stability of the controlled pressure and even changing the flow that passes through the valve.
It can be assembled quickly under ISO 4401-05 directional solenoid valves without the use of pipes.
It is supplied with a hex socket adjustment screw, locking nut and a travel limiting device for maximum adjustment.
It is available in four different pressure adjustment ranges, up to 320 bar.

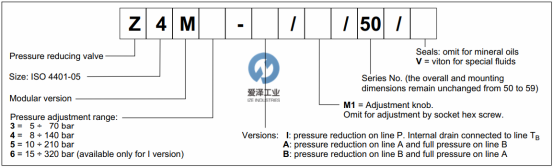

DUPLOMATIC閥Z4M系列選型
DUPLOMATIC閥Z4M系列其他常用型號：
DUPLOMATIC Z4M5-I/50
DUPLOMATIC Z4M5-B/50
DUPLOMATIC Z4M5-A/50
DUPLOMATIC Z4M4-A/50
DUPLOMATIC valves pilot operated NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DUPLOMATIC閥Z4M5-I/50的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DUPLOMATIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.aalatcr.cn.
DUPLOMATIC閥Z4M系列Z4M5-I/50介紹及選型
