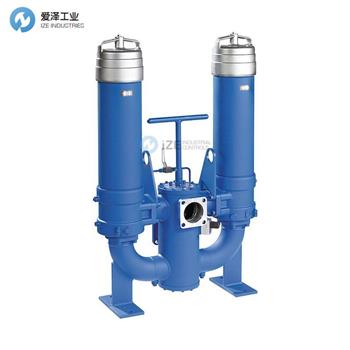

BOSCH-REXROTH過濾器40FLD系列產品介紹

40FLD（N）雙工過濾器適用于串聯安裝。它主要由兩個帶一個轉換配件（1）的過濾器外殼（2），兩個過濾器蓋（3），兩個過濾器元件（4）以及機械光學維護指示器（8）組成。

液壓油通過入口到達過濾器元件（4），在此對其進行清潔。濾出的污物顆粒收集在濾芯（4）中。過濾后的流體通過出口進入液壓回路。

在兩個過濾器外殼之間的切換通過切換桿進行。

過濾器殼體和所有連接元件的設計均應使壓力峰值（例如可能會出現的峰值）降低。如果由于加速的流體量突然打開大型控制閥，則可以安全地吸收它。

通過泄放螺釘（標準）和/或泄放閥–修改訂購代碼E –（7），可以放出要維護的過濾器側。

規格0400-0630 / 0120配有安裝支架。標準壓力平衡線（10）用于簡化過濾器更換中的填充和排氣。

默認情況下，濾鏡配有機械光學維護指示器（8）。必須單獨訂購的電子開關元件（9）固定在機械式光學維護指示器（8）上，并通過鎖緊環固定。

具有1個或2個開關點的電子開關元件通過符合IEC-60947-5-2的配對連接器或符合EN17301-803的電纜連接來連接。

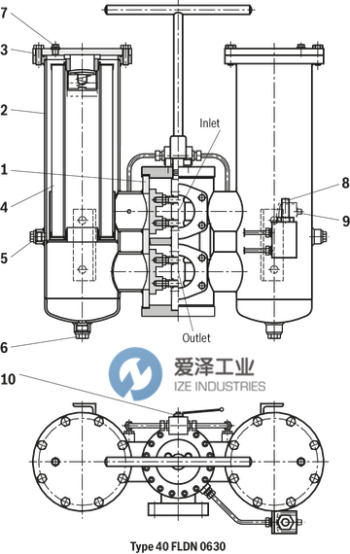

The 40FLD(N) duplex filter is suitable for inline installation. It basically consists of two filter housings (2) with one switch-over fitting (1), two filter covers (3), two filter elements (4) as well as mechanical optical maintenance indicator (8).

Via the inlet, the hydraulic fluid reaches the filter element (4) where it is cleaned. The dirt particles filtered out collect in the filter element (4). Via the outlet, the filtered fluid enters the hydraulic circuit.

Switching between the two filter housings is carried out by means of the switching lever.

The filter housing and all connection elements are designed so that pressure peaks – as they may occur e.g. in case of abrupt opening of large control valves due to the accelerated fluid quantity – can be securely absorbed.

Via the bleed screws (standard) and/or bleed valves – amending ordering code E – (7) the filter side to be maintained can be bled.

The sizes 0400-0630 / 0120 are equipped with mounting brackets. The standard pressure equalization line (10) serves to simplify the filling and bleeding in a filter element exchange.

By default, the filter is equipped with mechanical optical maintenance indicator (8). The electronic switching element (9) which has to be ordered separately is attached to the mechanical optical maintenance indicator (8) and held by means of a locking ring.

The electronic switching elements with 1 or 2 switching points are connected via a mating connector according to IEC-60947-5-2 or via a cable connection according to EN17301-803.

特征：

嵌入式安裝過濾器，可切換

特殊的高效過濾介質

在很寬的壓差范圍內過濾極細的顆粒和高容塵量

可選配帶存儲功能的機械光學維護指示器

帶有各種電氣開關元件的可選設備，模塊化設計

可選的旁通閥集成在過濾器外殼中

通過銀行段轉換進行轉換

進口在頂部，出口在底部

Features

Filters for inline installation, switchable

Special highly efficient filter media

Filtration of very fine particles and high dirt holding capacity across a broad pressure differential range

Optionally equipped with mechanical optical maintenance indicator with memory function

Optional equipment with various electrical switching elements, modular design

Optional bypass valve integrated in the filter housing

Switch-over via bank segment change-over

Inlet at top, outlet at bottom

BOSCH-REXROTH過濾器40FLD系列其他常見型號：

BOSCH-REXROTH 40FLD0201G25A00

BOSCH-REXROTH 40FLD0273H3XL-A00-07V2

BOSCH-REXROTH 40FLD0045H3XL-A00-07V2

BOSCH-REXROTH 40FLD0055H10XL-A00-07V2

BOSCH-REXROTH 40FLDKN0250H3XL-A00-00V2

BOSCH-REXROTH 40FLDKN0100H3XL-A00-07V2

BOSCH-REXROTH filter NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于BOSCH-REXROTH過濾器40FLD0020G60-A00-00B2.5-F0V00的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。

If you have any question for BOSCH-REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:  .
