HYDAC過濾器FLND系列規格描述
FILTER SPECIFICATIONS | |
Nominal pressure | 25 bar (FLND 160 to 400) |
Fatigue strength | At nominal pressure 106 cycles |
Temperature range | -10 °C to +100 °C |
Material of filter head | Aluminium |
Material of filter bowl | Aluminium (FLND 100 and 140: Steel) |
Type of clogging indicator | VM (differential pressure measurement |
Pressure setting of the clogging indicator | 2.5 bar or 5 bar (others on request) |
Bypass cracking pressure (optional) | 3.5 bar or 7 bar (others on request) |

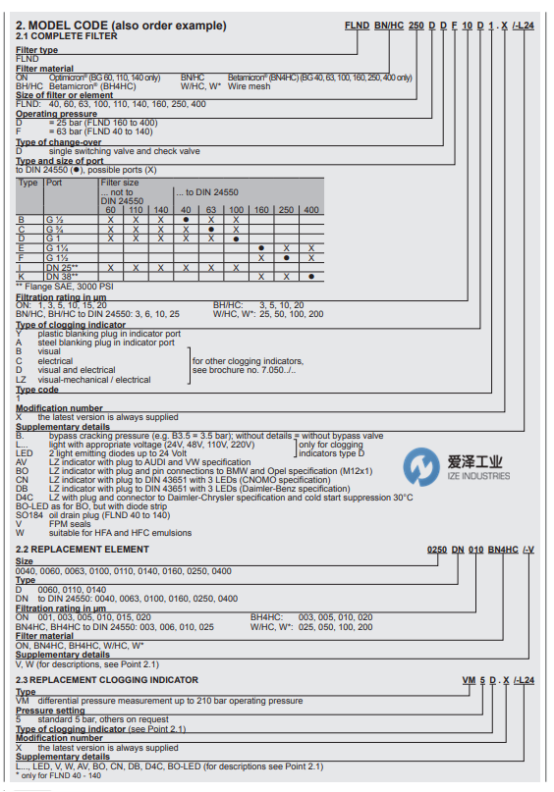

HYDAC過濾器FLND系列選型
HYDAC過濾器FLND系列介紹
Change-over inline filters in accordance with DIN 24550
Flow rates up to 400 l/min
Pressure levels up to 63 bar
Connections: G? to SAE DN 38
Installation sizes: 40, 63, 100, 160, 250, 400
符合DIN 24550的轉換內聯過濾器
流量高達400 l / min
壓力等級高達63 bar
連接：G?至SAE DN 38
安裝尺寸：40、63、100、160、250、400
HYDAC過濾器FLND系列其他常用型號：
HYDAC FLND BN/HC 160 DDE 25 A 1.2 /-B3.5
HYDAC FLND BN/HC 160 DDE 25 A 1.2 /-B7
HYDAC FLND BN/HC 160 DDE 25 A 1.2 /-V-B7
HYDAC FLND BN/HC 160 DDE 25 B 1.2
HYDAC FLND BN/HC 160 DDE 25 B 1.2 /-A2
HYDAC FLND BN/HC 160 DDE 25 B 1.2 /-A2-B3.5
HYDAC FLND BN/HC 160 DDE 25 B 1.2 /-B7
HYDAC FLND BN/HC 160 DDE 25 C 1.2
HYDAC FLND BN/HC160DDE25A1.2
HYDAC filter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HYDAC過濾器FLND系列的疑問，請隨時致電我們，愛澤工業（86-021-31006702）。我們將盡全力解決您的問題。
If you have any question for HYDAC products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.aalatcr.cn.
HYDAC過濾器FLND BN/HC160DDE25A1.2規格描述
