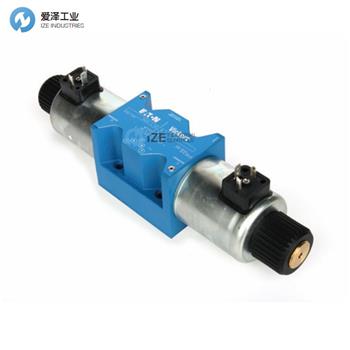

VICKERS閥DG4V-5-6C-M-U-C6-20技術參數
Product specifications | |
Actuation Type | Solenoid operated |
Brand | Vickers by Danfoss |
Coil Rating | 220 VAC 50 Hz |
Design Series | 20 Series |
Electrical Connection | ISO 4400 (DIN 43650) connector |
Energ Time | 30-40 ms |
Flow rate upto GPM | 32.0 |
Flow rate upto LPM | 120.0 |
Fluid Cleanliness | 19/17/14 micron |
Fluid compatibility | Petroleum Oils |
Indicator Light | No |
Interface | ISO4401-05/NFPA D05 |
Manual override | Plain |
Model Code 1 | DG4V56CMUC620 |
Performance | High performance |
Power Consumption | 105 VA |
Pressure rating BAR | 315.00 |
Pressure rating PSI | 4500.00 |
Seal type | Viton |
Solenoid Energising ID | Standard as per ANSI B93 9 |
Special features | None |
Spool Position Monitor | No |
Spool Type | Spool 6 |
Spring Arrangement | Spring centred |
Stage | Single stage |
Surge Suppr Damper | No |
Tank port rating BAR | 120.0 |
Tank port rating PSI | 1750 |
Valve Mount Type | Subplate/manifold mounted |
Valve type | Directional control valve |
Working temp max C | 50 |
Working temp max F | 122 |
Working temp min C | -20 |
Working temp min F | -4 |
VICKERS閥DG4V系列其他常用型號：
VICKERS DG4V-3-6C-M-U-D6-60
VICKERS DG4V-3-7A-M-U-H7-60
VICKERS DG4V-3-2N-M-U-H7-60-EN38
VICKERS DG4V-3-2N-M-U-H7-60-EN38
VICKERS DG4V-3-2AL-M-U-HL7-60-EN32
VICKERS DG4V-3-24A-M-U-HL7-60-EN32
VICKERS DG4V-3-6C-M-FTWL-H7-60
VICKERS DG4V-3-24AL-M-U-C6-60
VICKERS DG4V-3-0AL-M-U-B6-60
VICKERS DG4V-3-2BLH-M-U-H7-60
VICKERS DG4V-3-6BL-H-MU-H7-60
VICKERS DG4V-5-6C-M-U-C6-20
VICKERS valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于VICKERS閥DG4V-5-6C-M-U-C6-20的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for VICKERS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.aalatcr.cn.
