SAI馬達GM05 200 7HGP D47技術參數
Series | GM05 |
Displacement | 200 |
Shaft options | 7 = male 35x2x16 DIN 5480 |
Bearings | HGP = spherical roller bearings on motor cover and roller bearing on shaft output side. |
Distributor cover orientation | D47 |
Displacement | 191 cc/rev |
Bore | 45 mm |
Stroke | 24 mm |
Specific torque | 3.04 Nm/bar |
Peak pressure | 280 bar |
Peak power | 33 kW |
Maximum speed | 800 rpm |

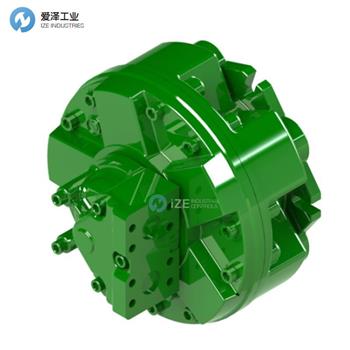

SAI馬達GM系列介紹
GM系列是一系列定量馬達，其設計源于數十年行業經驗的不斷改進。其高機械效率、容積效率以及卓越的抗氣蝕性能使其成為任何需要可靠性、高性能和速度控制的回路的理想選擇。
特征：
排量從 2.38 至 284.55 (in3/rev)
高 0 rpm 和失速扭矩條件
The GM Series is a range of fixed displacement motors with a design resulting from continuous improvement obtained from decades of experience in the field.High mechanical and volumetric efficiency and excellent cavitation resistance make them ideal products for any circuit that requires reliability, high performance, and speed control.
Features:
Displacements from 2.38 to 284.55 (in3/rev)
High 0 rpm and stall torque conditions

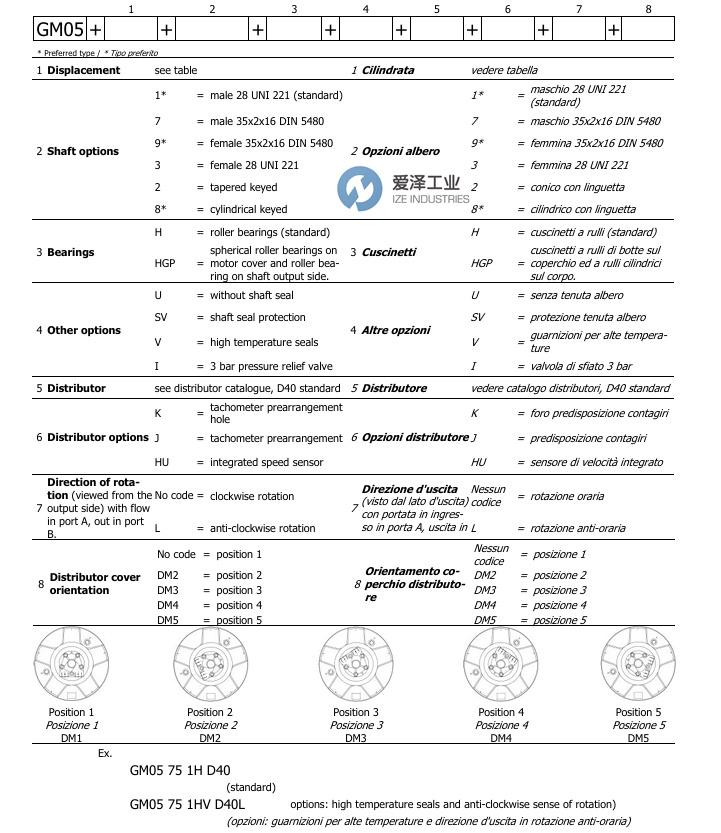

SAI馬達GM05系列選型
SAI馬達GM系列其他常用型號：
SAI GM2 500 1H D316AK DBM
SAI GM1-250-1H-D40-PIK
SAI GM05 200 7HGP D47
SAI GM05 40
SAI GM05 60
SAI GM05 75
SAI GM05 90
SAI GM05 110
SAI GM05 130
SAI GM05 150
SAI GM05 170
SAI Motor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SAI馬達GM05 200 7HGP D47的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any quesQ3Ton for SAI products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.aalatcr.cn.
SAI馬達GM系列GM05 200 7HGP D47技術參數及介紹
