MPFILTRI過濾器FHP350系列技術參數
Filter housing materials | - Head: Phosphatized cast iron |
Pressure | - Test pressure: 63 MPa (630 bar) |
Bypass valve | - Opening pressure 600 kPa (6 bar) ±10% |
?p element type | - Microfi bre fi lter elements - series N-R: 20 bar |
Seals | - Standard NBR series A |
Temperature | From -25 °C to +110 °C |
Connections | In-line Inlet/Outlet |
Note | FHP350 filters are provided for vertical mounting |
MPFILTRI過濾器FHP350系列介紹
FHP 是一系列多功能高壓過濾器，用于保護工業設備中高壓液壓系統中的敏感元件。
它們通過液壓接頭直接連接到系統的管路。
可用功能：
- 最大 1 1/2 英寸的內螺紋連接，最大返回流量為 500 l/min
- 精細過濾等級，使系統達到良好的清潔度
- 旁通閥，用于釋放過濾介質的過度壓降
- 止回閥，保護系統免受逆流
- 反向流動閥，允許雙向流動通過過濾器外殼?；亓鞑贿^(guò)濾。過濾器需要使用內部止回閥來引導流體沿一個方向流過濾芯，并在另一個方向繞過濾芯
- 低塌陷濾芯“N”，用于配備旁通閥的過濾器
- 高塌陷過濾器元件“H”，用于不配備旁通閥的過濾器
- 帶有外部支撐“R”的低塌陷過濾器元件，用于保護過濾器元件免受由單向閥引起的背壓或旁通閥提供的過濾器中的反向流動
- 帶有外部支撐“S”的高塌陷過濾器元件，用于保護過濾器元件免受由單向閥引起的背壓或不帶旁通閥的過濾器中的反向流動
- 視覺、電氣和電子差速器堵塞指示器
FHP is a range of versatile high pressure filter for protection of sensitive components in high pressure hydraulic systems in the industrial equipment.
They are directly connected to the lines of the system through the hydraulic fittings.
Available features:
- Female threaded connections up to 1 1/2”, for a maximum return flow rate of 500 l/min
- Fine fi ltration rating, to get a good cleanliness level into the system
- Bypass valve, to relieve excessive pressure drop across the fi lter media
- Check valve, to protect the system against reverse fl ow
- Reverse flow valve, to allow bidirectional flow through the filter housing. The back flow is not filtered. The filter requires the use of internal check valves to direct the flow through the element in one direction and around the element in the other
- Low collapse filter element “N”, for use with filters provided with bypass valve
- High collapse fi lter element “H”, for use with fi lters not provided with bypass valve
- Low collapse filter element with external support “R”, for filter element protection against the back pressure caused by the check valve or the reverse fl ow in fi lters provided with the bypass valve
- High collapse filter element with external support “S”, for filter element protection against the back pressure caused by the check valve or the reverse fl ow in fi lters not provided with the bypass valve
- Visual, electrical and electronic differential clogging indicators

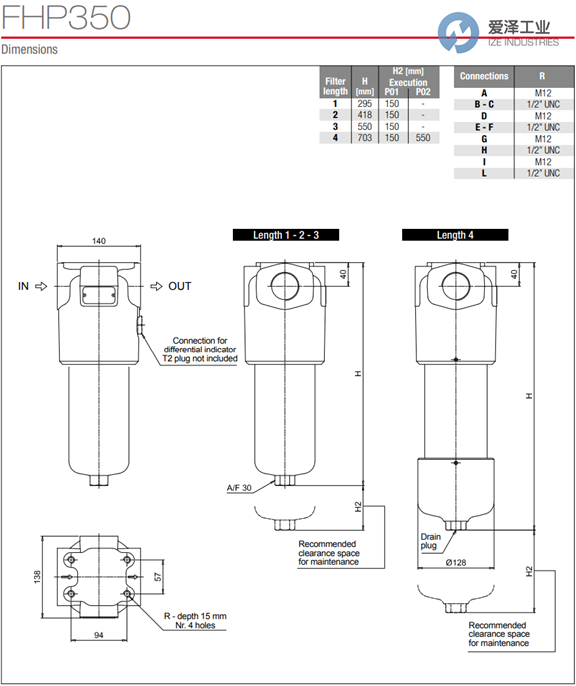

MPFILTRI過濾器FHP350系列技術尺寸

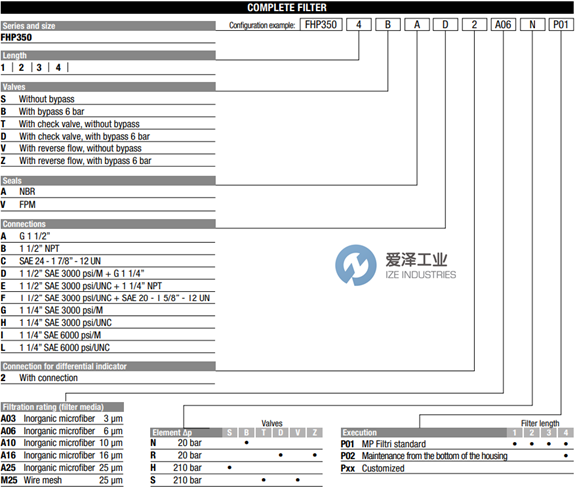

MPFILTRI過濾器FHP350系列選型
MPFILTRI過濾器FHP350系列其他常用型號：
MPFILTRI FHP3202SAG3250NP01
MPFILTRI FHP3202SAG3P0
MPFILTRI FHP3502SAE2P01
