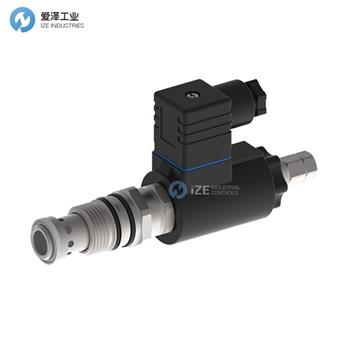

BUCHER閥WUVPOC-3DO-25-10-1 24D描述
說明
WU：電動壓力釋放閥
V：帶座兩個級別
P：芯筒式設計
O：用于卸載（開/關）
C：根據相關數據資料的標準型號
3：壓力功能3（帶外部導壓油排放 Z）
D：腔體類型 DD
O：常開型
25：壓力范圍10至250巴
10：公稱尺寸10
1：設計階段（訂購新設備時省略）
24：電壓，例如24（24V）
D：直流電源
WU = electr. operated pressure-relief valve
V = seated two-stage
P = cartridge design
O = for unloading duty (ON/OFF)
C = standard model per relevant data sheet
3 = pressure function 3 (with external pilot-oil drain Z)
D = cavity type DD
O = normally open
25 = pressure range 10 … 250 bar
10 = nominal size 10
1 = design stage (omit when ordering new units)
24 = voltage e.g. 24 (24 V)
D = current DC
BUCHER閥WUVPOC-3系列產品描述
描述
系列WUVPOC-3… / WUVPLC-3…及WUVPUC-3…閥為10尺寸的電動壓力釋放芯筒，帶M24x1.5安裝螺紋。具有座式導壓段和閥芯式主段。通過外部壓力調節，可平滑且獨立地調整較高壓力p1（釋放設定值）和較低壓力p2（次級壓力或卸載壓力），無需開啟液壓外殼，并可選擇任意壓力值。
“OC”型號主要用于可以卸載，低p值的旁通回路（開/關）。較低的壓力p2有助于減少油的發熱，從而降低能源成本?！癓C”型號主要用于雙壓力回路（高/低）。
“UC”型號（可定制）配備阻尼閥芯，通過確保阻尼開啟，防止不良的壓力峰值。當導壓段工作（壓力釋放功能）時，導壓油會通過端口Z排出，因此端口B可以被加壓，而不會影響閥門壓力設定值。
芯筒的所有外部部件均經過DIN 50979標準的鎳鋅鍍層處理，適用于最嚴苛的工作環境。
如果您計劃自行制造腔體或設計線性安裝系統，請參閱“相關數據頁”部分。
Description
Series WUVPOC-3… / WUVPLC-3… and WUVPUC-3…valves are size 10 electrically operated pressure relief cartridges with an M24x1.5 mounting thread. They have a seated pilot stage and a spool-type main stage. Using the external pressure adjustment, the higher pressure p1 (relief setting) and the lower pressure p2 (a secondary pressure, or the unloaded pressure) can be varied smoothly and independently of one another without opening the hydraulic envelope, and either pressure can be selected. The “OC” model is mainly used for bypass circuits that can be unloaded with low p values (ON / OFF). The lower p values result in less heating of the oil and thus lower energy Costs for the user. The “LC” model is mainly used for 2-pressure circuits (HI / LO). The “UC” model (available on request) is fitted with a damping spool that, by ensuring a damped opening, prevents undesirable pressure spikes. When the pilot stage is active (pressure relief function), pilot oil is drained externally to port Z. Port B can therefore be pressurised without that pressure being additive to the Valve pressure setting. All external parts of the cartridge are zincnickel plated to DIN 50979 and are thus suitable for use in the harshest operating environments. If you intend to manufacture your own cavities or are designing a line-mountinginstallation, please refer to the section “Related data sheets”.
BUCHER閥WUVPOC-3系列常用閥型號：
BUCHER WUVPOC-3DO-25-10-1 24D
BUCHER WUVPOC-1CO-35-10-1 24D
BUCHER WUVPOC-2DO-35-10-1 24D
BUCHER WUVPOC-2DO-35-10-1 24D
