BIERI泵HRK系列技術參數
Technical Data | |
Hydraulic fluid | mineral oil according to DIN 51524 (other fluids on request) |
Fluid temperature range | -20 to 80 °C |
Ambient temperature range | -30 to 50 °C |
Viscosity range | 12 to 220 mm2/s |
Max. operating pressure | 700 bar |
Operation pressure suction side | -0.2 bar to 0.5 bar gauge pressure |
Displacement volume | 0.12 to 0.34 cm3/rev |
Filtration (recommendation) | according to NAS 1638 class 6 resp. ISO/DIN 4406 17/15/12 |
Speed range | 500 to 3600 rpm |
Installation position | in tank (any) |
Direction of rotation | any |
Suction height | max. 150 mm |
Weight | 1.8/1.9kg |
Materials | eccentric shaft: steel |
BIERI泵HRK系列介紹
徑向柱塞泵 HRK（空心軸）
HRK系列的徑向柱塞泵是緊湊的徑向單元，適合在有限空間內使用。它們還配備了空心軸，可直接安裝電動機，無需聯軸器或連接套。
最大工作壓力：700 bar
最大排量：0.34 cm3/轉
最大轉速：3600 min?1
特點
緊湊設計，空心軸版本，無需聯軸器，通過電動機連接
優勢
在大驅動速度范圍內具備高容積效率，自排氣和自吸，節省空間的安裝
行業及應用
機床、夾緊裝置、電源裝置（例如用于壓力機）、分離裝置、升降系統、移動電源裝置、小型電源包，測試臺應用使用 BRK701/702 或 BRK1001/1002
安裝
配備一個或兩個泵元件，帶空心軸可直接安裝到電機上，無需聯軸器或連接套

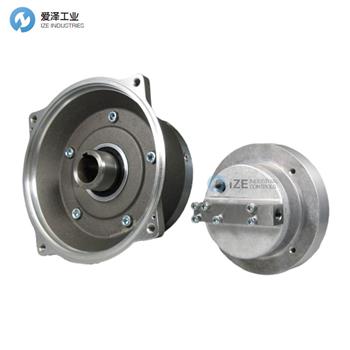

Radial piston pumps HRK (hollow shaft)
Radial piston pumps from the HRK series are compact radial units that are suitable for use in confined spaces. They are also equipped with a hollow shaft for direct mounting of the motor without bell housing or coupling.
Max. operating pressure: 700 bar
Max. Displacement: 0.34 cm3/rev
Max. Rotational speed: 3600 min-1
Features
Compact design, hollow shaft version, connection to electric motor without bell housing
Benefits
High volumetric efficiency across large drive speed range, self-venting and self-priming, space-saving attachment
Industries & Applications
Machine tools, clamping devices, power units (e.g. for presses), detachment devices, lifting systems, mobile power units, small power packs, for applications in test benches use BRK701/702 or BRK1001/1002
Mounting
With one or two pump elements, with hollow shaft for direct mounting to motor without bell housing or coupling
BIERI泵HRK系列其他常用型號：
BIERI HRK02-0,24-700-P-A*00
BIERI HRK02-0,24-700-V-A*00
BIERI HRK02-0,12-700-V-A*00
BIERI HRK02-0,12-700-DV-V-A*00
BIERI HRK02-0,17-700-V-A*00
BIERI HRK02-0,17-700-DV-V-A*00
BIERI HRK02-0,24-700-V-A*00
BIERI HRK02-0,24-700-DV-V-A*00
BIERI HRK02-0,29-700-V-A*00
BIERI HRK02-0,29-700-DV-V-A*00
BIERI HRK02-0,34-700-V-A*00
BIERI HRK02-0,34-700-DV-V-A*00
BIERI PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BIERI泵HRK02-0,24-700-V-A*00的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BIERI products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.aalatcr.cn.
BIERI泵HRK系列HRK02-0,24-700-V-A*00技術參數及選型
