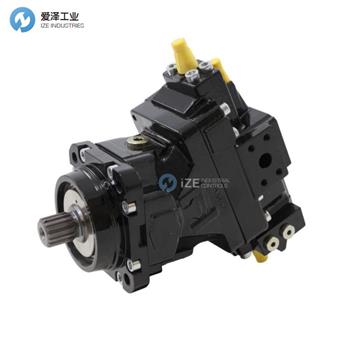

PARKER液壓泵V12-080-MA-IV-C-000-D-0-080/04參數介紹
SERIES V12 HYDRAULIC MOTORS | [V12]: ISO version |
FRAME SIZE | [080]: Displacement 80 [cm3/rev] |
FUNCTION | [M]: Motor; normal end cap position:EO, EP, HO and HP |
MAIN PORTS | [A]: SAE flange; metric threads, rear ports |
MOUNTING FLANGE | [I]: ISO flange |
SHAFT SEAL | [V]: PPS seal |
SHAFT | [C]: Spline Shaft (DIN 5480) - optional |
VERSION | [000]: 000 |
STATUS | [D]: D |
SPEED SENSOR | [0]: None |
MAXIMUM DISPLACEMENT | 80 |
PARKER液壓泵V12系列介紹
V12系列是一個傾斜軸變量排量馬達。這一享有盛譽的精密工程馬達旨在用于開放和封閉回路，特別設計用于最苛刻的移動應用。然而，V12也可以用于各種其他應用。該系列提供ISO、SAE和 Cartridge版本的兩種尺寸。小型外形使得安裝更加簡潔和經濟。
嚴格的產品測試和持續的產品開發確保我們的液壓泵在最苛刻的環境中以最佳效率運行。
市場：
? 移動
? 自然資源
? 政府
特點/優勢：
? 排量60 cc和80 cc
? 由于采用低重量活塞，具有高工作速度
? 寬排量比（5:1）
? 針對大多數應用提供廣泛的控制選項
? ISO、SAE和Cartridge版本
? 整個排量范圍內高總體效率
? 9活塞設計提供高啟動扭矩和平穩運行
? 小型外形和高功率重量比
? 由于緊湊且堅固的設計及平滑的流體通道，噪音水平低
? 長服務壽命和經過驗證的可靠性
應用：
? 建筑設備
? 礦業
? 石油和天然氣
? 國防
The Series V12 is a Bent Axis, Variable Displacement Motor. This renowned series of impressively engineered motors is intended for both open and closed circuits has been specifically designed for the most demanding mobile applications. However the V12 can also be utilized in a wide variety of other applications. Available in 2 sizes in ISO, SAE and Cartridge versions. The small envelope size makes for a clean and cost-effective installation.
Rigorous product testing and continuous product development help to ensure our hydraulic pumps operate at optimum efficiency and can perform in the most demanding environments.
Markets:
? Mobile
? Natural Resources
? Government
Features/Benefits:
? Displacement 60 cc and 80 cc
? High operating speeds thanks to low weight pistons
? Wide displacement ration (5:1)
? Broad range of controls for most applications
? ISO, SAE and Cartridge versions
? High overall efficiency throughout the entire displacement range
? The 9-piston design provides high start-up torque and smooth operation
? Small envelop size and a high power-to-weight ratio
? Low noise levels due to a very compact and sturdy design with smooth fluid passages
? Long service life and proven reliability
Applications:
? Construction Equipment
? Mining
? Oil & Gas
? Defense
PARKER液壓泵V12系列其他常見型號：
PARKER V12-080-MA-IV-C-000-D-0-080/04
PARKER V12-060-MS-SV-S-000-D-0-060/03
PARKER V12-080-MS-SV-S-000-D-0-080/02
PARKER V12-060-MU-SV-S-000-D-0
