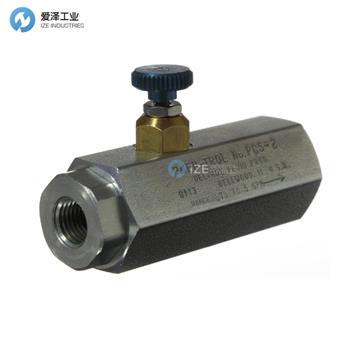

DELTROL限流閥PC5-3技術規格
Specifications | |
Max Operating Pressure (psi) | 3000 |
Max Operating Pressure (bar) | 207 |
Max Flow gpm | 10.00 |
Max Flow lpm | 37.90 |
Port Size | 3/8" |
Port Type | NPTF |
Material | Steel |
Knob | Knurled |
Recommended Operating Tempature Range (°F) | -15 to +400 |
Recommended Operating Tempature Range (°C) | -26 to +204 |
Maximum Operating Pressure (non-Shock Service) | |
Carbon Steel | 3,000 psi (207 bar) |
Minimum Operating Pressure | (See Flow Rating Chart) |
Operating Temperature range | -15° to +400° F (-26° to +204° C) |
Threads | NPTF, BSPT, SAE |
Materials | Body, Adapter: Clear, Zinc-Plated Steel |
DELTROL限流閥PC5-3介紹
描述
Pneu-Trol 壓力補償恒流調節閥在維持恒定流量方面異常精確，適用于高達 3,000 psi（207 bar）的壓力。這些可調閥門在壓力下，允許在指定流量范圍內獨立于入口壓力變化進行無限的輸出流量調整。內部止回閥可以旁通控制孔，提供無阻礙的自由逆流。
這些閥門的補償作用源于入口端的可調孔和出口端的一系列可變孔。流量通過可變孔由彈簧和活塞控制。這些元件共同作用調節液壓流量在確定的范圍內。流量在 1.5 gpm（5.7 lpm）時的控制精度為±15%，在高達 15.0 gpm（56.8 lpm）的高流量時控制精度為±10%。溫度變化從 60°F（16°C）到 180°F（82°C）幾乎不會影響調節效果。當溫度差 [ΔT] 為 70°F（21°C）時，流量變化大約為 ±2% 最大；而當溫度差 [ΔT] 為 120°F（49°C）時，流量變化大約為 ±4% 最大。
系列 5 單元采用高強度鋼制造。這些閥門的標準接頭為 NPTF，選定型號還可提供可選的 SAE 和 BSPT 螺紋。
Description
Pneu-Trol pressure compensated constant flow regulator valves are exceptionally accurate in maintaining constant flow with pressures up to 3,000 psi (207 bar). These adjustable valves, while under pressure, allow infinite output flow adjustment within a specified flow range independent of inlet pressure variations. An internal check valve to bypass the control orifice provides unrestricted free reverse flow.
The compensating action of these valves results from an adjustable orifice at the inlet end and a series of variable orifices at the outlet end. Flow through the variable orifices is controlled by a spring and piston. These elements work together to regulate hydraulic flow within the determined rates. Flows are controlled within ±15% up to 1.5 gpm (5.7 lpm) and ±10% at higher flow up to 15.0 gpm (56.8 lpm). Regulation is virtually unaffected by temperature changes from 60° F (16° C) to 180° F (82° C). At a temperature differential [ΔT] of 70° F (21° C) flow variation would be approximately ±2% max; while at temperature differential [ΔT] of 120° F (49° C) the flow variation would be approximately ±4% max.
Series 5 units are made from high-strength steel. The standard porting of these valves is NPTF with optional SAE and BSPT threads available on selected models.
