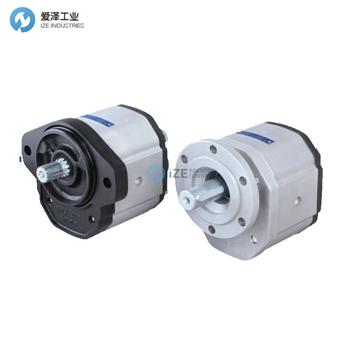

JIHOSTROJ泵Q2-34R-R11C11-SG04G04-N技術參數
Code | Q2-34R-R11C11-SG04G04-N |
Type | Q2 = Series Gear Pump |
Displacement[cm3] | 34 = 34,05 |
Rotation | R = Clockwise rotation |
Flange design | R11 = |
Drive shaft design | C11 = Cone 1:8 |
Location of inlets and outlets | S = Side (in the body) |
Liquid inlet and outlet connection shape | G04G04 = Thread BSP G3/4 |
Seal material | N = NBR |
JIHOSTROJ泵Q2系列介紹
Q2 管線泵專門設計用于農業和筑路機械的移動液壓系統以及物料搬運設備的液壓系統。該管線的幾何體積尺寸范圍為 Vg=10 至 100 cm3/轉。
該泵的特點是結構簡單，液壓平衡，尺寸緊湊，類型和連接范圍廣泛。法蘭和泵蓋由灰鑄鐵制成，型材主體由重型鋁合金制成。由重型鋼制成的 10 齒齒輪經過優化，適用于低噪音應用。Q2 結構使泵能夠在低轉速下高壓使用。
Q2 泵采用各種設計，具有不同的驅動器、連接法蘭、流體入口和出口。它們符合 ISO、SAE、UNI 以及其他全球標準。它們可以單向或多向設計交付。此外，該泵還提供可逆版本，具有內部或外部排水。
Q2 line pumps are particularly designed to be used in mobile hydraulic systems of agricultural and road building machines as well as in advanced hydraulic systems of material handling devices. The geometric volume size range of this line is Vg=10 to 100 cm3/rev.
The pumps are characterized by simple construction with a hydraulic pressure balance, compact dimensions and a wide range of types and connections. The flange and the pump cover are made of grey cast iron, the body of a se- ction bar made of a heavy duty aluminium alloy. The gear wheels with 10 teeth made of heavy duty steel are opti-
mized for low-noise applications. Q2 construction enables the pumps to be used at low revolutions at high pressure.
Q2 pumps are produced in various designs with diverse drives, connecting flanges, fluid inlets and outlets. They comply with the ISO, SAE, UNI as well as other worldwide standards. They can be delivered in one-way or multiple designs. Furthermore, the pumps are also available in reversible version with internal or external drainage.
JIHOSTROJ泵Q2系列其他常用型號：
JIHOSTROJ Q2-100-R11C11-SG06G05-N
JIHOSTROJ Q2-100L-R11C11-SG06G05-N
JIHOSTROJ Q2-82R-R11C11-SG06G05-N
JIHOSTROJ Q2-82L-R11C11-SG06G05-N
JIHOSTROJ Q2-71R-R11C11-SG06G05-N
JIHOSTROJ Q2-71L-R11C11-SG06G05-N
JIHOSTROJ Q2-61R-R11C11-SG06G05-N
JIHOSTROJ Q2-61L-R11C11-SG06G05-N
JIHOSTROJ Q2-51R-R11C11-SG05G04-N
JIHOSTROJ Q2-51L-R11C11-SG05G04-N
JIHOSTROJ Q2-43R-R11C11-SG05G04-N
JIHOSTROJ Q2-43L-R11C11-SG05G04-N
JIHOSTROJ Q2-34R-R11C11-SG04G04-N
JIHOSTROJ Q2-34L-R11C11-SG04G04-N
JIHOSTROJ Q2-27R-R11C11-SG04G04-N
JIHOSTROJ Q2-27L-R11C11-SG04G04-N
JIHOSTROJ Q2-22.5R-R11C11-SG04G04-N
JIHOSTROJ Q2-22.5L-R11C11-SG04G04-N
JIHOSTROJ PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于JIHOSTROJ泵Q2-34R-R11C11-SG04G04-N的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for JIHOSTROJ products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.aalatcr.cn.
