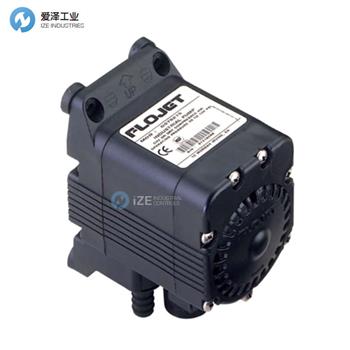

FLOJET氣動隔膜泵G57系列技術參數
Specifications | |
Pump Design | Double diaphragm |
Flow Rate | Up to 5 GPM (18.9 LPM) |
Air Inlet Pressure | 20 to 100 psi (1.4 to 6.9 bar) |
Liquid Temperature | 120°F (48.9°C) Nominal |
Self Priming | Up to 15 ft. (4.5m) |
Ports | Air Inlet 1/4” (6.3mm); Liquid Inlet/Outlet 3/8” (10-13mm) or 1/2” (12.7mm) |
Wetted Parts | Body and Check Valves; Diaphragms; Check Valve Seals; Springs; Polypropylene; Kalrez?; Viton? Extreme?; Hasteloy? |
Net Weight | 1.2 lbs. (0.54 kg) |
FLOJET氣動隔膜泵G57系列介紹
適用于各種應用，包括化學品輸送/轉移和分配、除草劑和水的轉移、溶劑應用、零件清洗器、墨水轉移和汽車清洗系統，G57系列泵專為實現卓越性能和可靠性而設計。
G57系列氣動隔膜泵結合了創新功能和嚴格的測試，提供了一種使用壽命長且無故障的泵。獨特設計的滑閥和止回閥，加上高性能能力，創造了終極緊湊型氣動隔膜泵技術。
G57系列可以提供高達5 GPM（18.9 LPM）的流量。高氣體入口壓力能力使其成為可以提供所需流量和壓力的終極泵，并且通過安裝的排氣消聲器而實現安靜運行。
產品特點
能夠承受高達100 psi（6.9 bar）的氣體入口壓力
具有耐用一體化安裝的堅固設計
防停設計
具有較大的無堵塞止回閥，能夠輕松通過直徑達1/8英寸（3.2毫米）的固體
耐腐蝕材料能夠處理多種化學品
采用防泄漏的徑向密封，無需關鍵的O型圈密封
安裝簡便，所有接口均為快速斷開型；可用的連接件有John Guest、管接頭、NPT和彎頭配置
與同類泵相比，氣體消耗低
Ideal for applications, including chemical feed/transfer and dispensing, herbicide and water transfer, solvent applications, parts washers, ink transfer, and car wash systems, the G57 Series pumps are engineered for ultimate performance and reliability.
The G57 Series air operated diaphragm pump combines innovative features and relentless testing to offer a pump that has a long, trouble-free service life. The uniquely designed shuttle valve and check valves, together with high-performance capabilities, have created the ultimate in compact air operated diaphragm pump technology.
The G57 Series can supply up to 5 GPM (18.9 LPM). The high air inlet pressure capability makes it the ultimate pump that delivers fluid at the needed flow and pressure and is engineered to operate quietly with installed exhaust muffler.
Product Features
Capable of air inlet pressures up to 100 psi (6.9 bar)
Robust design with durable integral mounting
Stall-proof design
Capable of passing solids up to 1/8 inch (3.2mm) diameter easily with large clog-free check valves
Corrosion resistant materials capable of handling a wide range of chemicals
Leak resistant radial seals, no critical O-ring seals
Easy installation with all quick disconnect ports; John Guest, hose barb, NPT and elbow configurations available
Low air consumption compared to other pumps in its class
FLOJET氣動隔膜泵G57系列其他常用型號：
FLOJET G573000
FLOJET G573005
FLOJET G573145
FLOJET G573175
FLOJET G573185
FLOJET G573202
FLOJET G573205
FLOJET G573206
FLOJET G573208
FLOJET G57320GA
FLOJET G573212
FLOJET G573215
FLOJET G573215
FLOJET G573218
FLOJET G57321G
FLOJET G573225
FLOJET G573235
FLOJET G573236
FLOJET G573256
FLOJET G575000
FLOJET G575005
FLOJET G575145
FLOJET G575155
FLOJET G575175
FLOJET G575202
FLOJET G575205
FLOJET G575207
FLOJET G575208
FLOJET G57520GA
FLOJET G575215
FLOJET G575218
FLOJET G57521G
FLOJET G575225
FLOJET G575235
FLOJET G57C142
FLOJET G57C172
FLOJET G57C182
FLOJET G57C202
FLOJET G57C20GA
FLOJET G57C212
FLOJET G57C222
FLOJET G57C223
FLOJET G57D202
FLOJET G57K16K
FLOJET PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FLOJET氣動隔膜泵G575205的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for FLOJET products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.aalatcr.cn.
FLOJET氣動隔膜泵G57系列G575205技術參數及選型
