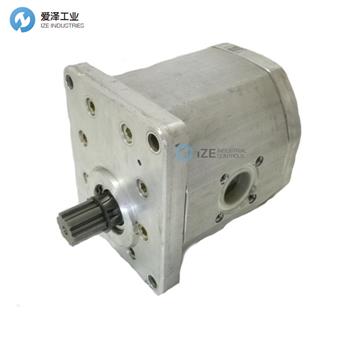

ORSTA齒輪泵A TGL 10859系列介紹

ND 160 齒輪泵是具有恒定排量和軸向間隙補償?shù)囊簤喊l(fā)生器。其額定流量范圍為 1.6 至 100 升/分鐘。

符合 TGL 10 859 標準的 A 型齒輪泵，單流量

殼體兩側開口，由高強度陽極氧化輕金屬合金制成，內有四個軸向移動的扁平滑動軸承襯套，用于安裝從動軸和小齒輪軸。

殼體驅動側端面由安裝板封閉，安裝板可在安裝時使齒輪泵居中；另一側端面由帶有壓力區域的蓋板封閉，用于補償軸向間隙。兩塊蓋板也由陽極氧化輕金屬制成。

指向蓋板的一對軸承襯套承受壓力。因此，軸承襯套的摩擦面被壓向小齒輪的端面。

滑動軸承和軸承襯套的端部摩擦面由流體潤滑。

ND 160 gear pumps are hydraulic pressure generators with a constant volume of displacement and an axial clearance compensation. They are manufactured in types having a rated flow from 1.6 to 100 1/min.

Gear pumps type A according to TGL 10 859, single flow

In a housing that is open to to either side and that is made of a high-tensile, anodized light-metal alloy there are four axially moving and flattened slide bearing bushes in which the driven shaft and the pinion shaft are mounted.

The housing face ends are closed on the drive side by the mounting plate which centers the gear pumup when installed, and on the other side by the cover having pressure areas for the axial clearance compensation. Both plates are are also made of anodized light-metal.

The pair of bearing bushes pointing to the cover are pressure-loaded. Thus, the rubbing surfaces of the bearing bushes are forced against the end faces of the pinion.

The slide bearings and the end rubbing faces of the bearing bushes are lubricated by the fluid.

ORSTA齒輪泵TGL10859系列其他常用型號：

ORSTA C6,3-2R TGL10859

ORSTA A4R TGL 10859

ORSTA D100-5R TGL 10859

ORSTA B125/16L TGL 10868

ORSTA A 25R TGL 10859

ORSTA A 16R TGL 10859

ORSTA A 10R TGL 10859

ORSTA A 40R TGL 10859

ORSTA A 63R TGL 10859

ORSTA A 100R TGL 10859

ORSTA gear pump NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業集產品開發、設計、制造、銷售、于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于ORSTA齒輪泵A 25R TGL 10859的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。

If you have any question for ORSTA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.aalatcr.cn.

ORSTA齒輪泵TGL 10859系列A 25R TGL 10859介紹
