BRINKMANN泵SGL801...804系列參數介紹
Type | SGL801...804 |
Mediums | Coolants, cooling- and cutting-oils, grinding oils |
Kinetic viscosity of the medium | ...45 mm2/s |
Temperature of medium | 0 ... 80 °C |
Particle-size in the medium | 6 mm SGL 801… 804 |
min. delivery volume | 1% of Q max. |
Dry running | Dry running causes increased wear and should be avoided. |
Switching-on frequency per hour | Motors less 3 kW max. 200 |
Ambient temperature | 40 °C |
Set-up altitude | 1000 m |

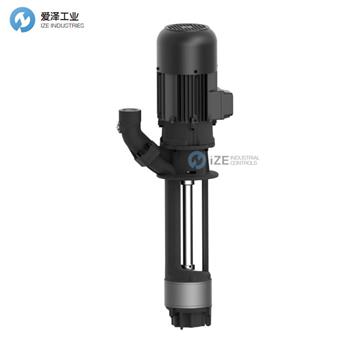

BRINKMANN泵SGL801系列介紹
這種類型的泵是單級或多級旋轉泵，葉輪固定在驅動軸延伸部分上。泵軸和電機軸通過軸夾相互連接。泵和電機形成一個緊湊且節省空間的單元。這些泵配有半開式葉輪和吸入螺釘。
垂直安裝的泵配有安裝法蘭。泵端浸入水箱，電機垂直延伸到水箱上方。
Pumps of this type are one or multi-stage rotary pumps where the impellers are fixed on the driving shaft extension. The pump shaft and motor shaft are interconnected by means of a shaft clamp. Pump and motor form a compact and space-saving unit. These pumps are fitted out with semi-open impellers and a suction screw.
Vertically mounted pumps are equipped with a mounting flange. The pump end immerses into the tank and the motor extends vertically above the tank.
BRINKMANN泵SGL801系列其他常用型號：
BRINKMANN SGL801/220MVX+421
BRINKMANN SGL801/220+001
BRINKMANN SGL801/320 -52XZ+1116
BRINKMANN SGL801/320-MV+210
BRINKMANN SGL801/450-X+175
BRINKMANN SGL801/450+001
BRINKMANN SGL801/450-MV+211
BRINKMANN PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BRINKMANN泵SGL801/450-MV+211的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BRINKMANN products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.aalatcr.cn.
BRINKMANN泵SGL801系列SGL801/450-MV+211技術參數及介紹
