FILL-RITE輸油泵FR311VB技術參數
Max Flowrate | 35 GPM / 132 LPM |
Flowrate Range | 0-35GPM |
Inlet / Outlet Thread Size (in.) | 1.25 " / 1 " |
Mounting Size / Thread / Type | 2" / NPT / Electric |
Duty Cycle | 30 min on / 30 min off |
Motor Power | 0.75 |
Power Type | AC |
Suction Lift (ft.) | 18 ' |
Dry Vacuum (in. Hg) | 14 |
Max Discharge Pressure | 26 PSI |
Discharge Head (ft.) | 60 ' |
Max Operating Pressure (PSI) | 26 |
Strainer Mesh Size (micron) | 40x 40 x .008” |
Accuracy (+/- %) | 2% |
Repeatability (+/- %) | 0.38% |
Display Type | Mechanical |
Display Digits | 4 |
FILL-RITE輸油泵FR311VB產品介紹
FR311VB 型號是 115/230V AC、35 GPM 重型燃油輸送泵。該泵和附件包配有流量計、軟管、噴嘴和安裝組件。
? 高性能 – 更大容量的交流泵，以 35 GPM 的速度傳輸燃油，非常適合從地上儲罐填充重型設備
? 鑄鐵結構 – 耐用的鑄鐵結構提供重型性能，可承受大容量、固定應用的日常使用
? 使用壽命長 - 熱保護電機可防止過熱，確保泵經受住時間的考驗
? 靈活的電源輸入 – 雙電壓設計只需轉動開關即可選擇 115V 或 230V 交流電源

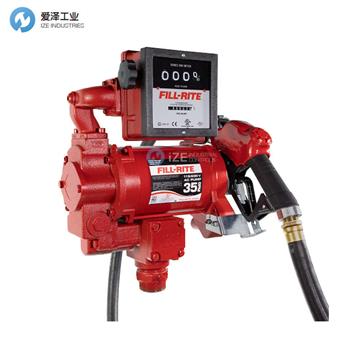

The FR311VB model is a 115/230V AC, 35 GPM, heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a meter, hose, nozzle, and installation components.
? Leading Performance – our highest volume AC pump that transfers fuel at 35 GPM, ideal for filling heavy equipment from aboveground storage tanks
? Cast-Iron Construction – durable cast-iron construction provides heavy-duty performance and withstands daily use in high-volume, stationary applications
? Long Life – thermally-protected motor prevents overheating, ensuring your pump withstands the test of time
? Flexible Power Input – dual voltage design allows you to select either 115V or 230V AC power with the simple turn of a switch
FILL-RITE輸油泵其他常用型號：
FILL-RITE FR311VB
FILL-RITE FR319VB
FILL-RITE FR319VBP
FILL-RITE FR310VN
FILL-RITE FR310VB
FILL-RITE FR311VN
FILL-RITE FR313V
FILL-RITE FR311VLN
FILL-RITE FR311VLB
FILL-RITE FUEL TRANSFER PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FILL-RITE輸油泵FR311VB的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for FILL-RITE products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.aalatcr.cn.
