S+S溫度傳感器KFTF - ETHERCATP介紹

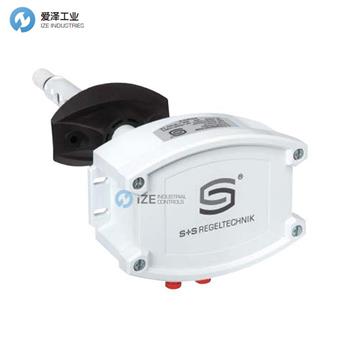

DUCT HUMIDITY AND TEMPERATURE SENSOR (± 2.0%) HYGRASGARD? KFTF - ETHERCAT P

Interconnective HYGRASGARD? KFTF - EtherCAT P duct humidity and temperature transmitter with M8 plug-in connector (EtherCATP-encoded), Bluetooth-enabled, in an impact resistant plastic housing with quick-locking screws, optionally with/without display and bar graph, with plastic sinter filter (replaceable), incl. mounting flange.

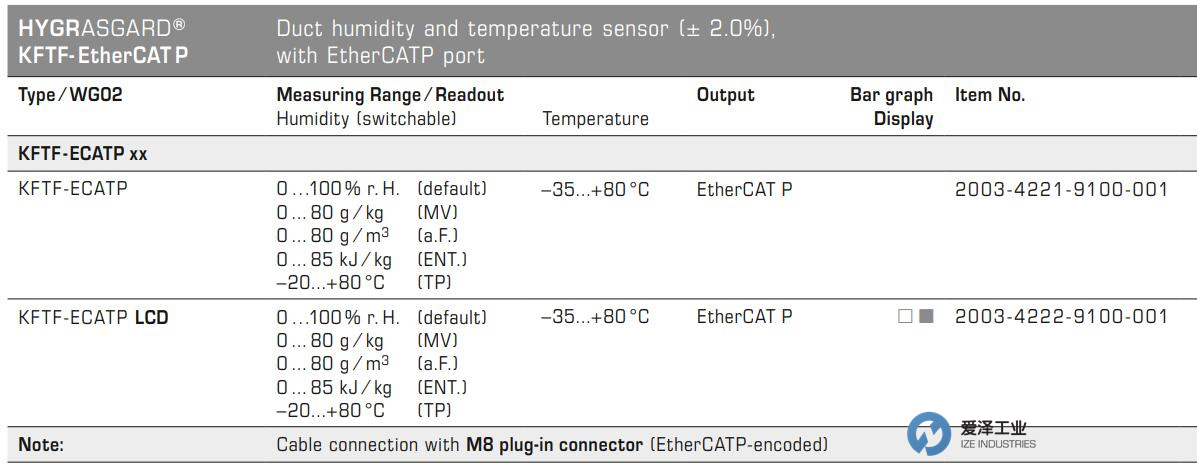

The sensor device serves to detect various parametres in humidity measurement. It measures relative humidity (0...100% r.H.) and ambient air temperature (–35...+80°C). These measurands are used internally to calculate further output values: absolute humidity (0...80 g/m3), mixture ratio (0...80 g/kg), dew point temperature (–20...+80°C) and enthalpy (0...85 kJ/kg) while ignoring atmospheric air pressure. A long-term stable, digital sensor guarantees precise measuring results. The sensor is factory-calibrated.

EtherCATP-enabled measuring transducer for industrial requirements with maximum reliability: includes easy PLC integration using the devices ESI configuration file, diagnostics (such as communication failure counter), advanced setting options, access to historical data (min/max) and sensor service interval determination. Optionally with large back-lit three-line display (witjh customised programming in the 7-segment and dot-matrix ranges) and bar graph (7-digit, LEDs freely configurable) for graphical display, e.g. as a traffic light indicator.

管道濕度和溫度傳感器 (± 2.0%) HYGRASGARD? KFTF - ETHERCAT P

互連 HYGRASGARD? KFTF - EtherCAT P 風管濕度和溫度變送器，帶 M8 插入式連接器（EtherCATP 編碼），支持藍牙，在帶快速鎖定螺釘的抗沖擊塑料外殼中，可選帶/不帶顯示器和條形圖，帶塑料燒結過濾器（可更換），包括安裝法蘭。

傳感器設備用于檢測濕度測量中的各種參數。它測量相對濕度 (0...100% r.H.) 和環(huán)境空氣溫度 (–35...+80°C)。這些被測量在內部用于計算進一步的輸出值：絕對濕度 (0...80 g/m3)、混合比 (0...80 g/kg)、露點溫度 (–20...+80°C ) 和焓 (0...85 kJ/kg)，而忽略大氣壓力。長期穩(wěn)定的數字傳感器保證了精確的測量結果。傳感器經過工廠校準。

支持 EtherCATP 的測量傳感器可滿足工業(yè)要求，具有最高可靠性：包括使用設備 ESI 配置文件輕松集成 PLC、診斷（例如通信故障計數器）、高級設置選項、訪問歷史數據（最小/最大）和傳感器服務間隔確定.可選配大型背光三行顯示屏（在 7 段和點陣范圍內進行定制編程）和用于圖形顯示的條形圖（7 位，LED 可自由配置），例如作為交通燈指示器。
