STEFEN MAYER磁力計FLC3-70技術參數
Specifications | |
Measuring range | ±200 μT @ 12 V supply voltage, |
Accuracy of calibration data | ±1% ± 0.5 μT |
Orthogonality of meas. directions | ±1 ? |
Operating temperature | ?25 ?C to +125 ?C |
Zero drift | <2 nT/K (15 ?C to 60 ?C) |
Supply voltage V+ ? V? | 4.8 V to 12 V DC |
Supply current | ～6 mA |
Reference output OUT? | (V+ ? V?)/2 ±1% |
Output voltages X, Y , Z ref. to OUT? | ±1 V/35 μT, max. ±(V+ ? V?)/2 |
Bandwidth | 0 to 1 kHz (?3 dB) |
Ripple @ excitation freq. = 16 kHz | typ. 3 mVrms |
DC output impedance | 220 ? |
Noise | <0.5 nTRMS or 3 nTPP (0.1 Hz to 10 Hz), |
Dimensions | diam. 25 mm × 50 mm |
Enclosure | PEEK, bone |
Connection cable | 6 conductors |
STEFEN MAYER磁力計FLC3-70產品介紹

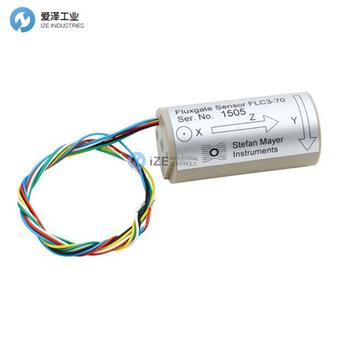

FLC3-70 是一款三軸微型磁通門磁力計，用于測量高達 200 μT 的弱磁場。該傳感器可用于傳統磁力計（霍爾或 MR 傳感器）的靈敏度和穩定性太低的任何應用中，例如用于測量地球磁場（用于導航或磁層研究）。
FLC3-70是一款完整的三軸磁通門磁力計。模擬輸出電壓與磁場的三個分量X、Y和Z成比例。由于其4.8 V至12 V的單電源電壓和低電流消耗，它是電池供電或μP控制應用的理想選擇。
FLC3-70傳感器可在高達 125°C 的溫度下工作。它適用于深鉆、太空和機載應用。
The magnetic field sensor FLC3-70 is a triaxial miniature fluxgate magnetometer for the measurement of weak magnetic fields up to 200 μT. This sensor can be used in any application where the sensitivity and stability of conventional magnetic field sensors (Hall or MR sensors) is too low, e. g. for the measurement of the earth’s magnetic field (for navigation or magnetospheric research).
The FLC3-70 is a complete three axis fluxgate magnetometer. The analog output voltages are proportional to the three components X, Y and Z of the magnetic field. Due to its single supply voltage of 4.8 V to 12 V and low current consumption it is the ideal choice for battery powered or μP controlled applications.
The FLC3-70 sensor can be operated at temperatures up to 125 ?C. It is suitable for deep drilling, space and airborne applications.
STEFEN MAYER磁力計其他常用型號：
STEFEN MAYER FLC3-70-HT
STEFEN MAYER FLC3-70
STEFEN MAYER Magnetic Field Sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于STEFEN MAYER磁力計FLC3-70的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for STEFEN MAYER products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.aalatcr.cn.
