IMAGESCO計數器GCA-06產品參數
DETECTS IONIZING RADIATION: | Detects Alpha particles above 3 MeV in energy. GM tube has a thin mica window that allows alpha radiation to be detected. Beta radiation above 50 KeV; X-Ray and Gamma radiation above 7 KeV. |
SENSOR | constructed using an American made LND 712 Geiger Mueller (GM) Tube. The GM tube has a .38 effective diameter. Alpha radiation end window comprised of 1.5-2.0 mg/cm2 mica. |
LCD DISPLAY | is a 16 character by 2 lines display. Displays count and equivalent radiation level. |
CPS MODE: | LCD displays second by second count and current radiation level in millirads (mR) per hour (mR/hr) Imperial or in millisivets (mS) per hour (mS/hr) Metric. Switch selectable. |
CPM MODE: | LCD display minute by minute count and background radiation level in microrads (uR) to millirads per hour (mR/hr) Imperial. Or in microsivets (uS) to millisivets per hour (mS/hr) Metric. |
I/O OPTIONS: | Headphones. External Speaker. External Power. 3.5mm Data Port for WIN PC and microcontroller interface. WIN PC requires optional 3.5mm to USB data cable. |
DATA OUTPUT PORT: | The 3.5MM stereo socket outputs either Serial Data (default) or a TTL logic pulse for each radioactive particle detected. Jumper switch selection. The serial output is the counts per second sent via USB cable (sold separately) to our Windows PC Geiger Counter Graphing program for charting and recording the measured radiation over time. |
SECONDARY INDICATORS: | Audio (clicks) and visual (LED) included. Also includes a headphone jack and a power jack for external power. A 110 VAC to 9V wall transformer power supply is included. 9V battery (mobile operation) not included. |
IMAGESCO計數器產品介紹

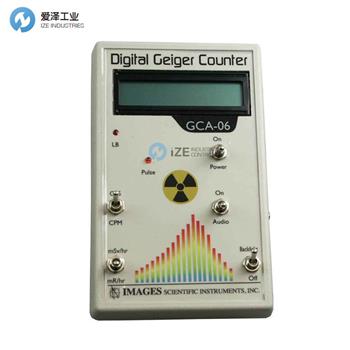

THE GCA-06 DIGITAL GEIGER COUNTER is the only Geiger counter you will ever have to purchase. It has a proven track record detecting and measuring nuclear radiation in hospitals, medical research, college laboratories,industrial settings, transport containers, top soil, granite table tops, scrap metal, oil fields, objects and interior spaces.
APPLICATIONS and USES: Personal radiation detection: Survey meter: Education and nuclear experiments: Emergency Services: Domestic preparedness: Post-accident response. Compliance Verification and Radiation Screening for wastes and other materials.
LCD DISPLAY: The 16 x 2 character LCD displays radioactive count and radiation level in mR/hr or mSv/hr. Time selection switch allows Counts Per Second (CPS) or Counts Per Minute (CPM) mode.
CASE SIZE: The GCA-06 measures 5 ?" (length) x 3 ?" (width) x 1 ?" (height).
EXTERNAL PROBE: The external wand makes it easier to search materials and to detect surface contamination.
COUNTING RANGE: 1 Count Per Minute (CPM) To 10,000 Counts Per Second (CPS).
RADIATION RANGE: 0.001 mR/hr resolution / 1000 mR/hr Range (Imperial measurements); 0.01 uSv/hr resolution - 10 mSv/hr range (Metric).
NIST TRACEABLE CALIBRATION: Factory calibration using an NIST traceable radiation source to insure accurate radiation measurements.
POWER: For mobile operation a 9V battery (not included) may be used. A 110-220 VAC wall transformer power supply is included.
GCA-06數字計數器是蓋革計數器。它在醫院、醫學研究、大學實驗室、工業環境、運輸容器、表土、花崗巖桌面、廢金屬、油田、物體和內部空間中檢測和測量核輻射具有良好的記錄。
應用和用途： 個人輻射檢測： 測量儀： 教育和核實驗： 應急服務： 國內準備： 事故后響應。廢物和其他材料的合規性驗證和輻射篩查。
LCD 顯示屏：16 x 2 字符 LCD 以 mR/hr 或 mSv/hr 顯示放射性計數和輻射水平。時間選擇開關允許每秒計數 (CPS) 或每分鐘計數 (CPM) 模式。
外殼尺寸：GCA-06 尺寸為 5 ?"（長）x 3 ?"（寬）x 1 ?"（高）。
外部探頭：外部棒使搜索材料和檢測表面污染變得更加容易。
計數范圍：每分鐘 1 次計數 (CPM) 到每秒 10,000 次計數 (CPS)。
輻射范圍：0.001 mR/hr 分辨率/1000 mR/hr 范圍（英制測量）； 0.01 uSv/hr 分辨率 - 10 mSv/hr 范圍（公制）。
NIST 可追溯校準：使用 NIST 可追溯輻射源進行工廠校準，以確保準確的輻射測量。
電源：對于移動操作，可以使用 9V 電池（不包括在內）。包括一個 110-220 VAC 壁式變壓器電源。
IMAGESCO計數器其他常見型號：
IMAGESCO GCA-07W
IMAGESCO GCA-07
IMAGESCO GCA-07W DL
IMAGESCO GCA-07W-C
IMAGESCO GCA-07W-DL-C
IMAGESCO GCA-06W-C
IMAGESCO GCA-06W
IMAGESCO GCA-06
IMAGESCO GCA-03W
IMAGESCO GCA-03
IMAGESCO Extraction Tool NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于IMAGESCO計數器GCA-06的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for IMAGESCO products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.aalatcr.cn.
