LUDWIG溫度計WT-BE-18/15-DAN-Sonder技術規格
Item no.: 45924； |
Insertable resistance thermometer type WT-BE-18/15-DAN Sonder |
connection head type B |
light metal |
M20 x 1,5 |
thermowell ? 15 mm at stainless steel |
with coating at PTFE-tube |
outside ? ca. 18 mm |
nominal length NL = 1.000 mm |
with exchangeable insert WT-ME-8 |
tube ? 8 mm at stainless steel |
insert length MEL = 1.030 mm |
sensor 1 x Pt 100 acc. to DIN EN 60751 class B |
3-wire connection |
connection via ceramic terminal block with 4 pins |
temperature range -50° to 200°C |

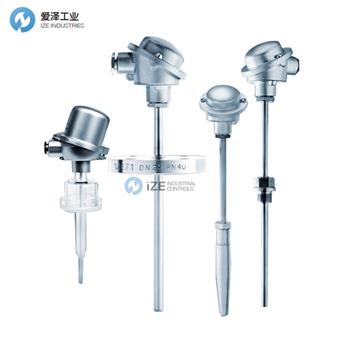

LUDWIG溫度計WT系列介紹
電阻溫度計內置的測量電阻經常用于電氣溫度測量。這種測量方法基于金屬的電阻與溫度的關系。在這方面，有人談到正溫度系數 (PTC)。為了使用這一特性，必須選擇金屬材料，以便能夠可靠地再現電阻的變化。這意味著特定特性可能不會因?qū)е聹y量誤差的內部和外部影響而改變。出于這個原因，鉑已成為工業溫度測量的標準，因為它可以以高純度形式開采，這意味著可以很好地再現電特性。它易于加工——這是形成導線必不可少的特性。此外它具有高熔點和非常高的化學穩定性。
Measuring resistors, which are built into resistance thermometers, are very often used in electrical temperature measurement.This measuring method is based on the electrical resistance of metals in relation to the temperature. In this connection one speaks of the positive temperature coeffient(PTC).In order for this property to be used the metal material must be selected so that the change in resistance can be reproduced reliably. This means that the specific characteristic may not be changed by internal and external influences causing measuring errors to arise. For this reason platinum has become the norm in industrial temperature measurement, since it can be mined in a highly pure form meaning that electrical properties can be reproduced very well.It is easy to work-a property which is essential for forming wires.In addition it has a high melting point and very high chemical stability.
