GF SIGNET傳感器2250系列選型
Body | Process Connection | Communication Interface | Electrical connetion | Cable length (m) | MFR # | Output | Connection | Maximum Operation | Code |
PVDF | Thread | S3L | Fixed cable | 10 | 3-2250-11L | Digital (S3L) | NPT | 3.4 bar (50 psi); 35.15 m (115 ft) | 159001241 |
PVDF | Thread | S3L | Fixed cable | 10 | 3-2250-11U | Digital (S3L) | NPT | 0.7 bar (10 psi); 7.03 m (23 ft) | 159001242 |
PVDF | Thread | 4-20 mA | Fixed cable | 10 | 3-2250-21U | 4-20 mA | NPT | 0.7 bar (10 psi); 7.03 m (23 ft) | 159001248 |
PVDF | Thread | 4-20 mA | Fixed cable | 10 | 3-2250-21L | 4-20 mA | NPT | 3.4 bar (50 psi); 35.15 m (115 ft) | 159001247 |
PVDF | Thread | S3L | Fixed cable | 10 | 3-2250-11U-1 | Digital (S3L) | ISO | 0.7 bar (10 psi); 7.03 m (23 ft) | 159001478 |
PVDF | Thread | S3L | Fixed cable | 10 | 3-2250-11L-1 | Digital (S3L) | ISO | 3.4 bar (50 psi); 35.15 m (115 ft) | 159001479 |
PVDF | Thread | 4-20 mA | Fixed cable | 10 | 3-2250-21U-1 | 4-20 mA | ISO | 0.7 bar (10 psi); 7.03 m (23 ft) | 159001482 |
PVDF | Thread | 4-20 mA | Fixed cable | 10 | 3-2250-21L-1 | 4-20 mA | ISO | 3.4 bar (50 psi); 35.15 m (115 ft) | 159001483 |
GF SIGNET傳感器2250系列介紹

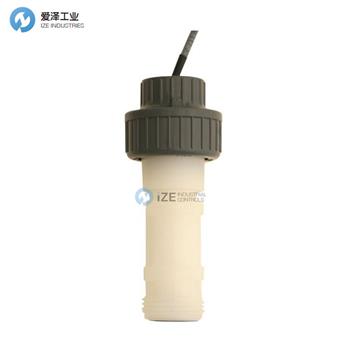

Type 2250 For Level and Depth Control 1/2 inch male union connector
The Signet 2250 Hydrostatic Level Sensor for level and depth control has a one-piece injection molded PVDF body and ceramic diaphragm for superior compatibility in corrosive liquids. Utilizing hydrostatic pressure the 2250 disregards false level signals from steam vapors, foam or any other debris on the liquid surface. Two pressure ranges allow for optimal resolution matched to your sensing needs. Solid state circuitry eliminates drift (no internal potentiometers).
These sensors are available with a proprietary digital (S3L) output, or 4 to 20 mA output. The extended cable and capillary tubing with the union connection and a customer supplied conduit, allow submersion in process vessels.
2250型用于液位和深度控制的1/2英寸公接頭
用于液位和深度控制的Signet 2250靜液位傳感器具有一體式注塑成型PVDF主體和陶瓷膜片，可在腐蝕性液體中實現出色的兼容性。2250利用靜水壓力忽略了蒸汽蒸氣，泡沫或液體表面上任何其他碎屑的虛假液位信號。兩個壓力范圍可提供最佳分辨率，以滿足傳感需求。固態電路消除了漂移（無內部電位計）。
這些傳感器可提供專有的數字（S3L）輸出或4至20 mA輸出。擴展的電纜和毛細管，帶有活接頭和客戶提供的導管，可浸入過程容器中。
GF SIGNET傳感器2250系列其他常用型號：
GF SIGNET 3-2250-11L
GF SIGNET 3-2250-11U
GF SIGNET 3-2250-21U
GF SIGNET 3-2250-21L
GF SIGNET 3-2250-11U-1
GF SIGNET 3-2250-11L-1
GF SIGNET 3-2250-21U-1
GF SIGNET 3-2250-21L-1
GF SIGNET Hydrostatic Level Senso NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GF SIGNET傳感器3-2250-21L的疑問，請隨時與我們電聯，（021-32250 6702），我們將盡全力解決您的問題。
If you have any question for GF SIGNET products, please feel free to dial 0086-21-32250 6702/ send request email to [email protected] / browse our website: www.aalatcr.cn.
GF SIGNET傳感器2250系列3-2250-21L選型
