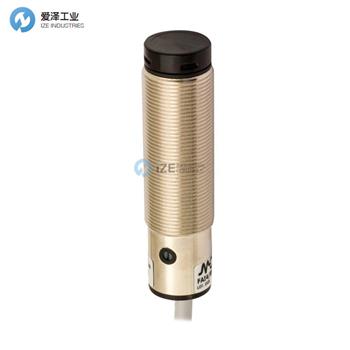

MICRO DETECTORS光電傳感器FAI7/BN-0A產品參數
Specifications | |
Technical features | |
Nominal sensing distance | 5m with RL110 |
Thermal drift of Sr | ≤10% Sr |
Repeat Accuracy | 0.05 |
Sensitivity adjustment | Trimmer |
Application | |
Function Principle | Retroreflective |
Optic position | Axial |
Outputs | |
Output type | PNP |
Output Function | NO+NC |
Switching frequency | 250Hz |
Electrical data | |
Operating Voltage | 10-30Vdc |
No-Load supply current | ≤30mA |
Load current | ≤100mA |
Leakage current | ≤10μA |
Output voltage drop | 2V max. IL =100 mA |
Max ripple content | 0.1 |
LED indicators | Yellow (Lon) or output status Lo/Do |
Time delay before availability | ≤200ms |
Short-circuit protection | Short circuit (autoreset), Overvoltage |
Reverse Polarity Protection | Polarity inversal, Inpulsive voltage |
Emission | Infrared (880 nm) |
Interference to external light | 5000lux (incandescent lamp), 10000lux (sunlight) |
Mechanical data | |
Dimensions | M18 x 1 /L =81,6mm |
Weight | 30g |
Housing Material | PBT |
Connections | M12 4pin Plug |
Active Head Material | PC |
Tightening torque | 1Nm |
Operating temperature | - 25°C…+ 70° C (Without freeze) |
Test/Approvals | |
Approvals | CE, cULus |
EMC compatibility | EN 60947-5-2 |
Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
Degree of protection | IP67 |
Accessories | |
Supplied Accessories | nuts M18 x 1, screwdriver |
MICRO DETECTORS光電傳感器FA系列介紹
FA 系列
M18 光電傳感器直流型
特點：
全系列M18傳感器，電源供電范圍為10至30 V直流
軸向和徑向光學設計，帶平面
反射型型號，用于透明物體檢測，紅色發射光
IP67防護等級
金屬或塑料外殼
所有型號均可調節靈敏度
具備全面的電氣保護
認可認證：CE和cULus認證
FA series
M18 photoelectric
sensors DC
Features
Complete range of M18 sensors with 10...30 Vdc power supply
Axial and radial optic with flat surface
Retro-reflective models for transparent objects detection, with red emission
IP67 protection degree
Metallic or plastic housing
Sensitivity adjustment available for all models
Total protection against any type of electric damages
Approvals: CE and cULus listed
MICRO DETECTORS光電傳感器FA系列其他常見型號：
MICRO DETECTORS FAI4/BN-0A
MICRO DETECTORS FAI5/BN-0A
MICRO DETECTORS FAI4/BN-1A
MICRO DETECTORS FAI5/BN-1A
MICRO DETECTORS FAI6/BN-0A
MICRO DETECTORS FAI7/BN-0A
MICRO DETECTORS FAl6/BN-1A
MICRO DETECTORS FAI7/BN-1A
MICRO DETECTORS FAI8/BN-0A
MICRO DETECTORS FAI8/BN-1A
MICRO DETECTORS Sensors NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MICRO DETECTORS光電傳感器FAI7/BN-0A的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MICRO DETECTORS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.aalatcr.cn.
