TIEFENBACH磁性開關167系列技術參數
Specifications | |
Response time (closing) | max. 3.5 ms |
Fall time (opening) | max. 0.2 ms |
Bounce duration | max. 0.5 ms |
Repeating accuracy | ± 0.2 mm |
Hysteresis of pulse switch | approx. 25% Sn |
Hysteresis of latching switch | approx. 10% Sn |
service life (depending on the contact load) | 10 9 switching cycles |
Temperature range | |
wK167K | -20 oC to +85 oC |
wKC167K.. Normally open contact | -55 °C to +300 °C |
wKC167K.. Changeover contact | -55 °C to +150 °C |
Switching frequency | max. 100 Hz |
Shock load in 11 ms duration | |
Pulse switch | max. 50 g |
Latching switch | max. 15 g |
Mounting position | any |
Protection class according to DIN 40050 | IP 65 |
Housing | Gunmetal |
Contact cartridge | brass |
Weight | approx. 1.6 kg |

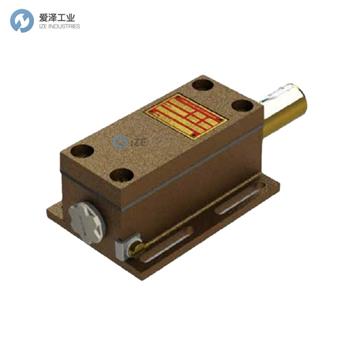

TIEFENBACH磁性開關167系列介紹
? 通過長孔進行固定
? 1 個隔離觸點（常閉觸點/常開觸點）或 1 個轉換觸點（自鎖開關）
? 最多 3 個隔離觸點（常閉觸點/常開觸點）或 2 個轉換觸點（脈沖開關）
? Fastening by means of elongated holes
? 1 isolated contact (normally closed contact/normally open contact) or 1 changeover contact (latching switch)
? Up to 3 isolated contacts (normally closed contact/normally open contact) or 2 changeover contacts (pulse switch)
TIEFENBACH磁性開關167系列規格尺寸
TIEFENBACH磁性開關167系列其他常用型號：
TIEFENBACH WKC167K214
TIEFENBACH WKC167K112
TIEFENBACH WKC167K114
TIEFENBACH WKC167K212
TIEFENBACH switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TIEFENBACH磁性開關WKC167K214的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TIEFENBACH products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.aalatcr.cn.
TIEFENBACH磁性開關167系列WKC167K214技術參數及介紹
