ORBITAL風速儀421IMC系列技術參數
Mechanical Data | |
Materials | Housing: Brass (Cu Zn39Pb3) |
Top: Stainless 18/8 Steel (AISI 304) | |
Bearings: Low friction precision steel bearings, on top semi-closed with special seal. | |
Cable | Cable type: Shielded PVC LIYCH, 3 x 0,25 mm2 |
Cable diameter: 4,6 mm | |
Screwed connection | Material: Stainless 18/8 Steel |
Type: M12, 50.616M/EMV, (EMC) | |
Weight | 0,7 kg |
Transport container | Dimensions: (L x H x W): 278 x 185 x 217 mm |
Material: Expanded polystyrene | |
Total weight: 1,15 kg |

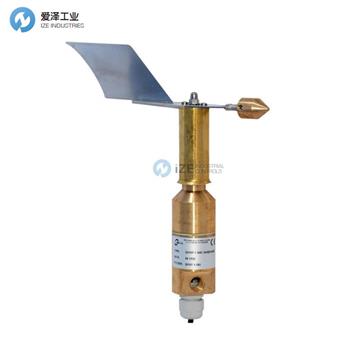

ORBITAL風速儀421IMC系列介紹
這款Orbital標準風向標設計于1990年,可精確測量風向,用于風力渦輪機的偏航調節。該風向標采用優質黃銅制造,無需校準。
主要特性
? 光電傳感器
? PNP 數字輸出
? 堅固耐用,使用壽命長(黃銅/不銹鋼材質)
? 可連接加熱裝置
? 短路保護
? 啟動風速 >1.5 米/秒
? 黑/白光檢測
The Orbital standard wind vane is designed in 1990. It gives you precise measurements of wind direction for yaw regulation of wind turbines. The wind vane is created in high quality brass and does not need calibration.
Key Features
? Opto-electrical sensor
? PNP digital output
? Robust and long-term durability performance (brass/stainless steel)
? Prepared for heating unit
? Short circuit protected
? Start wind >1,5 m/s
? Black/white detection

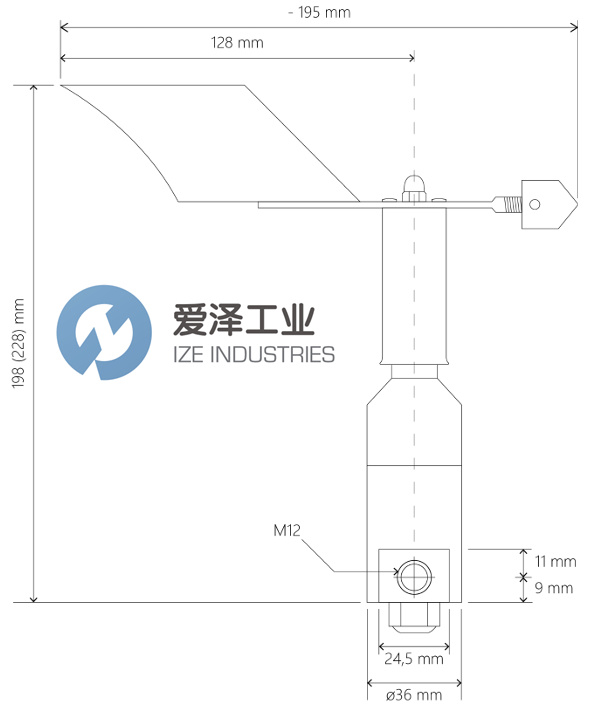

ORBITAL風速儀421IMC系列規格尺寸

ORBITAL風速儀421IMC系列其他常用型號:
ORBITAL 421IMC 421-00324
ORBITAL 421IMC 421-00583
ORBITAL Wind vane NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ORBITAL風速儀421IMC 421-00324的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for ORBITAL products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.aalatcr.cn.
ORBITAL風速儀421IMC 421-00324技術參數及介紹
