E+E傳感器EE310系列技術參數
Technical data | |
Measuring range - Humidity | 0...100% RH |
Measuring range - Temperature | -40...+180 °C (-40...356 °F) |
Pressure range | 0.01... 20 bar (0.15...300 psi) |
Analogue output | 0-1 V / 0-5 V / 0-10 V0-20 mA / a-20 mA |
Digital interface | RS485 with Modbus RTUEthernet PoE with Modbus TCP |
Accuracy | ±0.95% RH±0.1 °C (0.18 °F) |

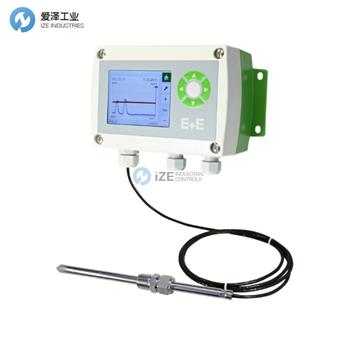

E+E傳感器EE310系列介紹
EE310傳感器經過優化，能夠在-80 °C（-112 °F）至180 °C（356 °F）和20巴（300磅/平方英寸）的工業應用中實現最佳可靠性。除了高精度測量相對濕度（RH）和溫度（T）外，該設備還能計算所有其他濕度相關參數。EE310采用先進的E+E濕度傳感元件，采用尖端薄膜技術制造，確保卓越的測量精度。
產品信息
提供多種型號，包括壁掛式、管道式和遠程探頭。遠程探頭可在-80 °C（-112°F）至180 °C（356 °F）范圍內使用，壓力密封探頭最高可承受20巴（300磅/平方英寸）。外殼設計便于安裝和維護。EE310可配備IP65等級的聚碳酸酯或不銹鋼外殼。測量值通過兩個模擬輸出以及可選的數字接口RS485（支持Modbus RTU）或以太網（支持Modbus TCP）輸出。
顯示與數據記錄
采用先進的TFT彩色顯示屏，可同時顯示多達四項測量值，并提供詳細的故障診斷功能。內置的數據記錄功能會存儲所有測量和計算值。用戶可以直接在設備上通過圖表顯示數據，或通過USB接口方便地下載。
傳感器保護與調節
E+E專有涂層保護傳感元件免受腐蝕性和導電污染的影響。輸出信號可以自由配置，并可以通過顯示屏直接調節濕度和溫度參數，或使用免費提供的PCS10配置軟件通過USB接口進行校準。
典型應用
工業過程監控與控制
食品和制藥行業
干燥機和加濕器
氣候和測試箱
潔凈室
The EE310 is optimised for best reliability in industrial applications from -80 °C (-112 °F) up to 180 °C (356 °F) and 20 bar (300 psi). In addition to highly accurate measurement of the relative humidity (RH) and temperature (T), the device calculates all other humidity related parameters. The EE310 employs high-end E+E humidity sensing elements manufactured in state-of-the-art thin film technology, which enable the outstanding measurement accuracy.
Product Information
Various models are available including wall, duct and remote probe. The remote probe can be used from -80 °C (-112° F) up to 180 °C (356 °F) and the pressure tight probe up to 20 bar (300 psi). The design of the enclosure allows easy mounting and maintenance of the unit. EE310 is available with IP65 polycarbonate or stainless steel enclosure. Measured values are available on two analog outputs and on the optional digital interface RS485 with Modbus RTU or Ethernet with Modbus TCP.
The state of the art TFT colour display shows up to four measurands simultaneously and offers extensive error diagnostics. The integrated data logging function saves all measured and calculated values. The data can be displayed as graph directly on the device or easily downloaded via USB Interface.
The E+E proprietary coating protects the sensor elements against corrosive and electrically conductive pollution. Outputs can be freely configured and a humidity and temperature adjustment performed directly via display or with the free PCS10 product configuration software via the USB service interface.
Typical applications:
industrial process monitoring and control
food and pharmaceutical
industry dryers and humidifiers
climate and test chambers
clean rooms
E+E傳感器EE310系列其他常用型號：
E+E EE310-T1F5D2C1GA6GB6SBL0SBH50
E+E EE310-AP0M1T2HS1F4D2
E+E EE310-T10K10PA25D2J3PC4C1
E+E EE310-T5C1GA6GB6SBL0SBH180
E+E SENSOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于E+E傳感器EE310-T1F5D2C1GA6GB6SBL0SBH50的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for E+E products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.aalatcr.cn.
E+E傳感器EE310系列EE310-T1F5D2C1GA6GB6SBL0SBH50技術參數及選型
