NIDEC編碼器AV32系列技術參數

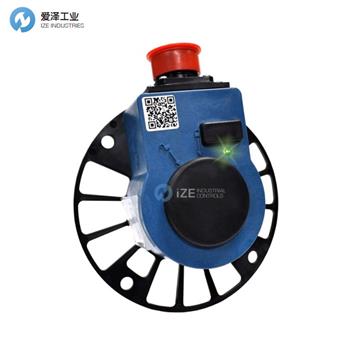

Avtron AV32 Bullseye32TM是一款模塊化的雙件式增量式編碼器（也稱為轉速表或旋轉脈沖發生器）。它提供兩個相位的A、B四分頻脈沖輸出，并帶有互補信號。AV32可以通過專利的自動居中系統，幾乎安裝在任何電機或機械表面，無需預留孔。

AV32提供多種安裝法蘭：Bx型適用于平坦、無特征表面，F(xiàn)x型適用于安裝在電機風扇罩上，Px型適用于帶有現有導向孔的電機表面。由于Bullseye32采用模塊化設計，不需要軸承或聯軸器。這與最新的磁阻傳感器（MR）技術相結合，使得AV32具有優越的機械性能和更高的可靠性。

Bullseye32的輸出包括六個信號：

兩個相位（A、B），相差90°，并帶有互補信號（A、B）。

一個標記脈沖（Z）及其互補（Z）。

其輸出分辨率可以在出廠或由OEM進行編程。轉子選擇僅依據軸安裝需求決定，而不考慮PPR（每轉脈沖數）。

The Avtron AV32 Bullseye32TM is a modular, two piece incremental encoder (also known as a tachometer or rotary pulse generator). It provides a two phase, A Quad B frequency (pulse) output, with complements. The AV32 mounts on virtually any motor or machine surface using the patent-pending auto-centering system. No pilot is required.

The AV32 offers a wide range of mounting flanges: Bx styles for flat, featureless surfaces, Fx styles for mounting on motor fan covers, Px styles for mounting on motor surfaces with existing pilots.

Because the Bullseye32 is modular, there are no bearings or couplings required. This, combined with the latest magnetoresistive (MR) sensor technology, allows the AV32 to provide superior mechanical performance and increased reliability. An Avtron Bullseye32 output has six signals: (A, B) 90° out of phase, with complements (A, B). A marker pulse with complement (Z, Z) is also provided.

Output resolution on the Bullseye32 is factory and OEM-programmable. Selection of the rotor is based only on the shaft mounting requirements (and not PPR).
