HYDROTECHNIK傳感器3410-1400-A233Z1S技術參數
General characteristics | |
Sensor principle | Electromagnetic induction |
Measuring range | 1 ... 5000 Hz |
Measuring accuracy | ±0.1% of full scal |
Mechanical connection | M14 x 1 |
Body material | Aluminum |
Ambient temperature | -25 ... 85 °C |
IP degree of protection | IP67 (DIN EN 60529) |
Output signal | 4 ... 20 mA, ISDS |
Electrical connector | M16 x 0.75, 6-pin |
Part No. | 3410-1400-A233Z1S |

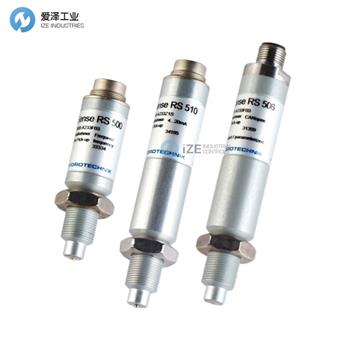

HYDROTECHNIK傳感器HySense RS 5xx系列介紹
HySense RS 5xx 是 Hydrotechnik 革命性的電感式傳感器系列，能夠以極高的精度和穩定性檢測旋轉部件的頻率。這些傳感器內置具有強大計算能力的微控制器，因此也被稱為“智能傳感器”。反過來，這種傳感器智能功能使其能夠根據傳感器本身的線性化表修改信號，從而輸出經過補償的輸出信號（RS 506、RS 510）。
堅固耐用且緊湊的設計使其安裝簡便快捷，并適用于惡劣環境。該傳感器系列專為 Hydrotechnik 渦輪流量計開發，但也可用于各種測量任務。
HySense RS 5xx is Hydrotechnik’s revolutionary inductive sensor series, which detects the frequency of rotating components with extremely high accuracy and stability. These sensors contain a microcontroller with sufficient computing power, and are accordingly also referred to as “intelligent sensors.” In turn, this sensor intelligence makes it possible to modify a signal on the basis of linearization tables in the sensor itself so that a compensated output signal can be output (RS 506, RS 510).
A heavy-duty and compact design makes easy and fast installation possible and means that these sensors can be used in harsh environments. This sensor series was developed specifically for Hydrotechnik turbine flow meters, but can also be used for a broad range of measuring tasks.
HYDROTECHNIK傳感器HySense RS 5xx系列其他常用型號：
HYDROTECHNIK 3410-1400-A233Z1S
HYDROTECHNIK 3410-1600-A233F03
HYDROTECHNIK 3410-1600-A211F07
HYDROTECHNIK 3410-1400-A213C11
HYDROTECHNIK 3410-1400-A211Z13
