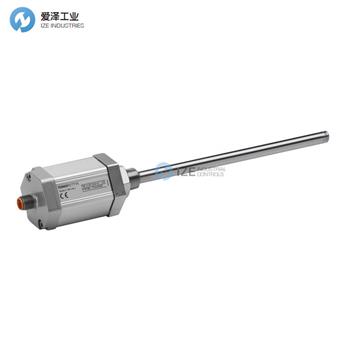

NOVOTECHNIK傳感器TMI系列介紹

帶模擬接口的 TLM/TMI 傳感器的起始和終止位置可根據具體應用進行調整。輸出范圍（0..10 V / 10..0 V / 0..20 mA / 等）可完全重新定義。最多兩個位置標記可以通過兩個連接器引腳和簡單的編程程序同時重新校準。重新編程后，仍能保證指定的線性度。

編程
必須將位置標記置于所需的新起始位置。在連接器引腳 8 (PROG) 上施加至少 3 秒的高電平后，將激活編程模式。之后，在引腳 4 (DIAG) 上施加至少 3 秒的高電平至低電平轉換，將設置起始位置。然后，必須將位置標記置于所需的終止位置。下一次施加至少 3 秒的低電平高電平至低電平轉換，將設置終止位置?，F(xiàn)在必須先恢復引腳 4 的低電平，然后再恢復引腳 8 的高電平。

如果使用帶有兩個位置標記的系統，則兩個位置必須同時重新編程。

如果編程過程未在 60 秒內完成，即引腳 8 (PROG) 上升沿與接管終端位置之間的時間超過 60 秒，則起始/終端位置將被忽略，并且不會寫入傳感器的 EEPROM。

連續編程的條件：
- 時間必須滿足以下條件
- 終端位置必須大于起始位置
- 不得出現錯誤情況，例如，如果使用帶有兩個磁鐵的系統，則兩個磁鐵都必須正常工作

The start and end position on TLM/TMI transducers with analog interfaces can be adjusted for application specific purposes. The output range (0..10 V / 10..0 V / 0..20 mA / etc.) can be completely redefined. Up to two position markers can be recalibrated at the same time via two connector pins and a simple programming procedure. After reprogramming the specified linearity is still guaranteed.

Programming
The position marker(s) has to be placed at the desired new start position(s). The programming mode will be activated when high level is applied at connector pin 8 (PROG) for at least 3 seconds. After that a high to low transition at pin 4 (DIAG) with a minimum duration of 3 seconds will set the start position(s). Then the position marker(s) has to be placed at the desired end position(s). The next high to low transition with a low level of at least 3 seconds will set the end position(s). Now the low level at pin 4 and then the high level at pin 8 has to be taken back.

If a system with two position markers is used, always both positions are reprogrammed at the same time.

If the programming procedure is not completed within 60 seconds, i.e. the time between the rising edge at pin 8 (PROG) and the take over of the end position exceeds 60 seconds, the start/end position is ignored and not programmed into the transducer's EEPROM.

Conditions for successive programming:
- the timing has to meet the conditions
- the end position(s) must be greater than the start position(s)
- an error condition must not be present, e.g. if a system with two magnets is used, both magnets have to be functional

NOVOTECHNIK傳感器其他常用型號：

NOVOTECHNIK TMI-1000-002-423-102

NOVOTECHNIK TM1-0150-002-423-101

NOVOTECHNIK TMI-0400-008-222-301

NOVOTECHNIK TMI-0500-008-222-301

NOVOTECHNIK TMI-0700-008-222-301

NOVOTECHNIK TMI-0900-008-222-301

NOVOTECHNIK TRANSDUCER NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于NOVOTECHNIK傳感器TMI-1000-002-423-102的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。

If you have any question for NOVOTECHNIK products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.aalatcr.cn.

NOVOTECHNIK傳感器TMI-1000-002-423-102技術參數
