HELM壓力變送器HM31D(0-1KPA)-3-V1-F2-W2規格介紹
Differential Pressure Transducer | HM31 |
Measuring Range | 0-1KPA |
Overall accuracy (linear + repeatability + lagging) | 3=± 0.1% FS |
Signal Output (standard power supply of energization) | V1=1 ~ 5V DC (12 ~ 36V DC) |
Additional functions | F2=G 1 / 4 external thread |
Additional functions | W2=Socket type (IP65, DIN 43650) |
HELM壓力變送器HM31系列介紹
產品概述
HM31差壓變送器是采用德國HELM公司的差壓敏感芯片和專用變送器集成電路及高性能關鍵組件，嚴格的生產工藝，確保了該系列產品的性能優異，且體積小，安裝方便，是微小差壓、流場、流速、流量測量的很好選擇。
產品特點
高性能價格比
全不銹鋼結構設計，體積小巧重量輕，安裝方便
性能穩定可靠
差壓范圍：0~10kPa...2MPa
耐靜壓高達20MPa
產品應用
工業過程控制
流量測量
醫用儀器
空氣動力測量
液壓、氣動設備
Description

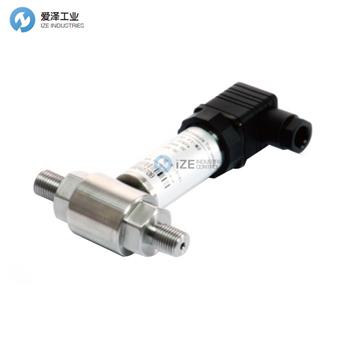

HM31 differential pressure transducer adopts German HELM made differential pressure sensitive chip and special transducer integrated circuit as well as high – performance key set and strict production process to ensure that this series of product features superior performance, small dimensions, easy installation, which is best ideal for measurement of micro differential pressure, flow field, flow rate, and flow.
Features of Product
High ratio of performance to cost
Fully made of stainless steel with small dimensions, light weight, and easy installation
Reliable and stable performance
Range of differential pressure: 0 ~ 10KPa … 2MPa
Static high pressure resistant to 20MPa
Application of Product
Industrial process control
Flow measurement
Medical instrument
Air power measurement
Hydraulic and pneumatic equipment
HELM壓力變送器他常見型號：
HELM HM31D(0-1KPA)-3-V1-F2-W2
HELM Pressure transmitter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HELM壓力變送器HM31D(0-1KPA)-3-V1-F2-W2的疑問，請隨時與我們聯系，愛澤工業（86-021-35350722）。我們將盡全力解決您的問題。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website:www.aalatcr.cn.
HELM壓力變送器HM31D(0-1KPA)-3-V1-F2-W2產品參數及選型
