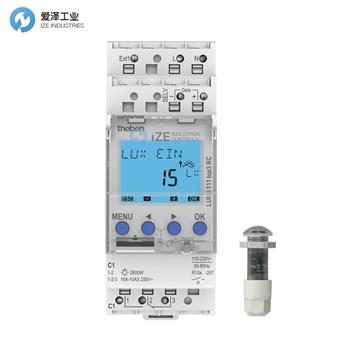

THEBEN傳感器LUNA 111 top3 EL 1110230技術參數
Technical data | |
Operating voltage | 110 V AC - 230 V AC |
Frequency | 50 - 60 Hz |
Number of channels | 1 |
External inputs | 1 |
Stand-by consumption | ~0.8 W |
Setting range brightness | 1 - 99000 lx |
Preset brightness value | 15 lx |
Switch-on delay | 0 - 59 min |
Switch-off delay | 0 - 59 min |
Type of contact | Changeover contact |
Width | 2 modules |
Installation type | DIN rail |
Type of connection | DuoFix spring terminals |
Display | LCD-Display |
Keyboards | 4 touch buttons |
Switching capacity | 16 A at 250 V AC, cos φ = 1, 10 A at 250 V AC, cos φ = 0.6 |
Incandescent/halogen lamp load | 2600 W |
Halogen lamp load | 2600 W |
Fluorescent lamp load (conventional) not corrected | 2600 VA |
Fluorescent lamp load (conventional) parallel-corrected | 130 μF |
LED lamp < 2 W | 50 W |
LED lamp 2-8 W | 600 W |
LED lamp > 8 W | 600 W |
Inrush current | max. 800 A / 200 μs |
Sensor (included) | Flush-mounted light sensor |
Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
Ambient temperature | -25°C ... 55°C |
Type of protection | IP 20 |
Protection class | II, Sensor III |
Max. cable length to sensor | 100 m |
THEBEN傳感器LUNA 111 top3 EL 1110230介紹
光照度控制器
交付時包含外部光傳感器
1通道
外部輸入
可通過應用程序進行編程
通過可選的低功耗藍牙 OBELISK top3 進行安全傳輸
最大程度的操作安全性，只有當藍牙 OBELISK top3 插入設備時，程序才能從應用程序傳輸?shù)蕉〞r(shí)開關
開關亮度數字可調
可調節開啟和關閉切換延遲
開關亮度和開關延遲可分別設置開啟和關閉
屏幕顯示通道和開關狀態以及當前勒克斯值
DuoFix 彈簧端子
零交叉開關，用于節省繼電器的開關和高燈負載
最多可連接4個傳感器
最多可將10個設備連接到數字傳感器
OBELISK top2 存儲卡接口（PC 編程）
擴展亮度范圍
永久開啟/關閉
測試功能
開關預選
顯示屏背光（可關閉）
PIN 碼
運行小時計數器
Light level controller
External light sensor included in delivery
1 channel
External input
Programming by app possible
Safe transfer via optional Bluetooth Low Energy OBELISK top3
Maximum manipulation security, programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the device
Switching brightness digitally adjustable
Adjustable On and Off switching delay
Switching brightness and switching delay can be set separately for switching On and Off
Onscreen display of channel and switching status as well as current lux value
DuoFix spring terminals
Zero-cross switching for relay-saving switching and high lamp loads
Up to 4 sensors can be attached
Up to 10 devices can be connected to a digital sensor
Interface for OBELISK top2 memory card (PC programming)
Extended brightness range
Permanent switching ON/OFF
Test function
Switching preselection
Display back light (can be turned off)
PIN coding
Operating hour counter
THEBEN傳感器LUNA系列其他常用型號：
THEBEN LUNA 111 top3 EL 1110230
THEBEN LUNA 121 top3 RC AL 1210130
THEBEN LUNA 121 top3 RC EL 1210230
THEBEN LUNA 122 top3 RC AL 1220130
THEBEN LUNA 122 top3 RC EL 1220230
THEBEN LUNA 111 top3 AL 1110130
THEBEN LUNA 112 top3 AL 1120130
THEBEN LUNA 112 top3 EL 1120230
