DECKMA油水監測器OMD-32技術參數
Range | 0 – 200 ppm |
Resolution | 1ppm (0.1 ppm below 10ppm) |
Accuracy | up to +/- 1ppm below 10ppm |
Response time | < 5s |
Sample Water Pressure | >max. 10 bar |
Sample Flow | typ. 2 Liter / min |
Sample Water Temperature | up to 90° C |
Power Supply | 24 V – 240V AC or DC |
Power Consumption | < 10 VA |
ppm Alarm | 2 adjustable ( independent, entire range ) |
ppm Alarms delay | 2 adjustable ( independent, from 1 sec. up to 540 sec.) |
ppm Alarm visual indication | 2 Red LEDs |
ppm Alarms Contact Rating | 2 Potential free 1 pole change over contacts, 3 A / 240 VAC |
System Fault Alarm visual indication: | Red LED |
System Fault Alarm Contact Rating | Potential free 1 pole change over contact, 3 A / 240 VAC |
Output Signal | 0(4) – 20 mA, ext. Load < 150 W, Output range adjustable |
Cleaning System | Automatic, pneumatically operated |
Cleaning system air pressure | 2.5 - 6 bar, typ. <0.1 Liter / hour |
Ambient Temperature | + 1 to + 55° C |
Size | 360 mm W x 240 mm H x 120 mm D |
Distance(Computer Unit to Measuring Cell) | Option: up to 5m upon request |
Degree of Protection | IP 65 |
Weight | 4 kg |
Pipe Connections | R ?" Female |

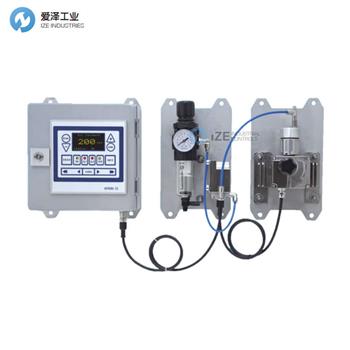

DECKMA油水監測器OMD-32系列介紹
OMD-32 油水監測器專為與油水分離器裝置配合使用而設計。
OMD-32 采用 DECKMA HAMBURG OMD 系列工業儀器和 15ppm 艙底報警監測器的技術制造而成，其規格和性能超出了國際海事組織 MEPC. 107 (49) 號決議中規定的 15ppm 油水監測器規格要求。OMD-32 裝置配備 2 個 10 ppm 工作調節報警器。其他設定點也是可能的（例如 100ppm），并且可以使用前面板上的按鈕隨時在現場進行調整。如果超過報警設定點，則前面板上會顯示報警，并切換相應的繼電器。如果發生故障，前面板上的系統 LED 將從閃爍的綠色變?yōu)槌Ａ恋募t色，并且切換系統故障繼電器觸點。
可提供 0(4) - 20 mA 信號輸出，用于驅動記錄器或外部儀表。
The OMD-32 Oil-in-Water Monitor has been designed specifically for use in conjunction with oil-water separator units.
The OMD-32 has been constructed using technology of the DECKMA HAMBURG OMD series industrial instruments and 15ppm Bilge Alarm Monitors, that have a specification and performance which exceeds the requirements of the International Maritime Organization specifications for 15ppm Oil-in-Water Monitors contained in Resolution MEPC. 107 (49).The OMD-32 unit is supplied with 2 works-adjusted alarms at 10 ppm. Other set points are possible (e.g. 100ppm) and can be adjusted on site at any time by using the buttons at the front panel.If an alarm set point is exceeded, the alarms are visible at the front panel and the appropriate relays are switched. In case of malfunction the System LED at the front panel will change from blinking green to permanent red, and a system fault relay contact is switched.
A 0(4) - 20 mA signal output is available for driving a recorder or external meter.
DECKMA油水監測器OMD系列其他常用型號：
DECKMA OMD-32 10900
DECKMA OMD-32A
DECKMA OMD-21
DECKMA OMD-24
DECKMA OMD-2005
DECKMA OMD-2008
DECKMA OIL-IN-WATER MONITOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DECKMA油水監測器OMD-32的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DECKMA products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.aalatcr.cn.
