AKM匹配器AKM345系列技術參數
STANDARD SPECIFICATIONS: | |
Temperature Sensing System: | Bellows type expansion system (no mercury) compensated for ambient temperature changes |
Capillary Type: | Copper-nickel with a protective stainless steel cover |
Accuracy: | For T>0°C: ±2% of Full Scale Range |
Switches: | 2, 4, or 6 Form C contacts, Electrically separated circuits, Each switch can be set independently |
Terminal Wiring Switches: | 1.5mm2 to 4mm2 |
Ingress Protection: | IP66 Standard |
Corrosion Protection: | C5-High as per ISO 12944 |
Ambient Operating Temperature: | -40°C to 70°C - Standard |
Storage Temperature: | -50°C to 80°C |
General Requirements: | Per IEC 60076-22-1 |
Dielectric Isolation Switches: | 2000VAC to Earth for 60 Seconds |
Dielectric Isolation Remote Output: | 500VAC to Earth for 60 Seconds |
Overvoltage category, Pollution degree, Class: | Category III, Pollution degree 2, Insulation Class 1 |
AKM匹配器AKM345系列介紹

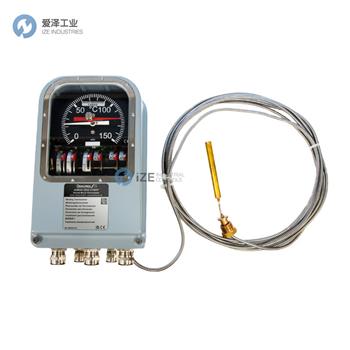

The AKM345 GEN3 OTIWTITM is the future of oil and winding temperature indication for transformers of all classes from the industry leader. The AKM345 GEN3 utilizes the same great bellows technology as previous generations with new features to support the digitization of transformers and standard options to meet all specification requirements. The new and improved design makes for an even more reliable and robust product with IP66 ingress protection and C5-High corrosion protection as a standard. The bellows technology allows for integrated winding temperature simulation and the ability to drive up to 6 adjustable switches and various remote outputs for monitoring applications.
Features
The original bellows technology temperature indicator with integrated winding temperature simulation
All new RS-485 Modbus digital communication option to allow more data to be easily integrated into monitoring systems
Dual analog output options for installations where local and remote monitoring is required
Up to 6 fully independent switches for control and alarming circuits
Optional adjustable switching differential to fine tune cooling operation
Standard switch rated for up to 15 Amps VAC and up to 10 Amp DC switches available for higher VDC loads (magnetic blow out, M.B.O.)
Various analog output types available — 4-20mA, 0-5VDC, Pt100
IP66 standard ingress protection
C5-High standard as per ISO 12944
Polar option for operation down to -60°C
Easy all-in-one winding temperature installation, no need for external equipment
Reliable and accurate technology proven over time
New hinged or removable cover for easy access to wiring when mounting on a bracket or in a control cabinet
Same installation footprint and mounting options as the previous generations AKM345
Single enclosure design eliminates the need for additional external accessories
AKM345 GEN3 OTIWTITM 是行業領導者所有級別變壓器油和繞組溫度指示的未來。 AKM345 GEN3 采用與前幾代產品相同的出色波紋管技術，并具有支持變壓器數字化的新功能和滿足所有規格要求的標準選項。 新的和改進的設計使產品更加可靠和堅固，具有 IP66 入口防護和 C5-高腐蝕防護作為標準。 波紋管技術允許集成繞組溫度模擬，并能夠驅動多達 6 個可調開關和各種遠程輸出以用于監控應用。
特征
具有集成繞組溫度模擬功能的原創波紋管技術溫度指示器
全新 RS-485 Modbus 數字通信選項，讓更多數據能夠輕松集成到監控系統中
雙模擬輸出選項，適合需要本地和遠程監控的安裝
用于控制和報警電路的多達 6 個完全獨立的開關
可選的可調節切換差值以微調冷卻操作
額定電流高達 15 安培的 VAC 和高達 10 安培的直流開關可用于更高的 VDC 負載（磁吹、M.B.O.）
提供多種模擬輸出類型 - 4-20mA、0-5VDC、Pt100
IP66標準防護等級
C5-高標準，符合 ISO 12944
極地選項可在 -60°C 溫度下運行
一體化繞組溫度安裝方便，無需外部設備
可靠且準確的技術經過時間的考驗
新的鉸鏈式或可拆卸式蓋板，安裝在支架或控制柜中時可輕松接線
與前幾代 AKM345 相同的安裝空間和安裝選項
單一外殼設計無需額外的外部附件
AKM匹配器其他常用型號：
AKM AKM345-00402263-T
AKM AKM345-00402316-T
AKM AKM345-00402935-T
AKM matching device NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AKM匹配器AKM345-00402263-T的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AKM products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.aalatcr.cn.
AKM匹配器AKM345系列AKM345-00402263-T介紹
