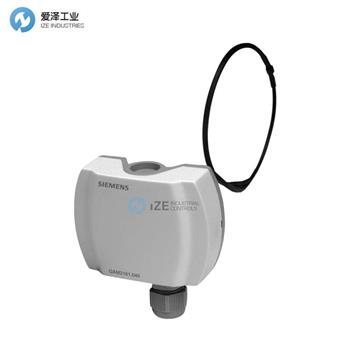

SIEMENS溫度傳感器QAM2171.040技術參數
Operating voltage | DC 13.5…35 V or DC 24 V class 2 (US) |
Frequency | 50/60 Hz at AC 24 V |
Power consumption | ≤1 VA |
Perm. cable lengths | Copper cable 0.6 mm dia. 50 m |
Measuring range | ?50...+ 50 °C (R2 = factory setting), |
Probe | Probe length 0.4 m |
Sensing element | Pt 1000 |
Time constant | 30 s at 2 m/ s |
Dead time | <1 s |
Measuring accuracy in the range of | –25...+ 25 °C ±0.75 K |
Output signal, linear (terminal I1: QAM2171.040) | 4...20 mA ?50...+50 °C or ?35...+35 °C or 0...50 °C |
Protection degree of housing | IP54 according to EN 60529 |
Protection class | III according to EN 60730-1 |
Connection terminals for | 1 x 2.5 mm2 or 2 x 1.5 mm2 |
Cable entry gland (enclosed) | M 16 x 1.5 |
SIEMENS溫度傳感器QAM系列介紹
QAM… 管道溫度傳感器適用于通風和空調設備：
? 送風或排風溫度傳感器
? 限制傳感器，例如 供氣溫度的最低限制
? 參考傳感器，例如 用于補償室溫作為室外溫度的函數
? 露點溫度傳感器
? 測量傳感器，例如 用于測量值指示或連接到樓宇自動化和控制系統
The QAM… duct temperature sensors are for use in ventilation and air conditioning plants as:
? Supply or extract air temperature sensors
? Limit sensors, e.g. for minimum limitation of the supply air temperature
? Reference sensors, e.g. for compensation of the room temperature as a function of the outside temperature
? Dew point temperature sensors
? Measuring sensors, e.g. for measured value indication or for connection to a building automation and control system
SIEMENS溫度傳感器QAM系列其他常用型號：
SIEMENS QAM2161.040
SIEMENS QAM2171.040
SIEMENS QAM2151.040/MO
SIEMENS SENSORS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SIEMENS溫度傳感器QAM2171.040的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SIEMENS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.aalatcr.cn.
