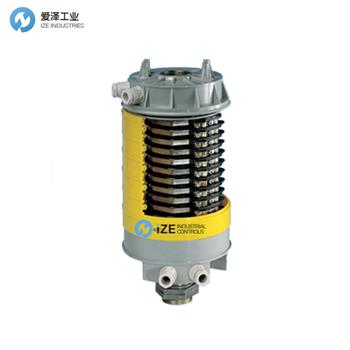

RAVIOLI滑環PRR系列技術參數
Main features | |
Container: | Aluminium |
Positioning: | Preferably on the vertical axis |
Connections: | Wired rings with 2 m protruding cables |
Cable entry: | Inside the fixing tube for the rings and through lateral M20 unions for the brush holders |
Brushes: | 10A charcoal |
Composition: | From 6 to 24 rings of 10 A |
Compliance: | EN 60947-5-1 EN 60529 2014/35/UE 2014/30/UE - 2006/42/CE |
Homologation: | CE |
Electrical Characteristics | |
Rated voltage: | 400 V AC - DC |
Rated current: | Ith 10A |
Degree of protection: | IP 65 |
Maximum rotation speed: | 100 rpm |
Test voltage: | 2 kV |
Operating temperature: | -20 °C ÷ +60 °C |
RAVIOLI滑環PRR系列其他常用型號：
RAVIOLI GPRRA1202
RAVIOLI GPRRA6
RAVIOLI GPRRA10
RAVIOLI GPRRA16
RAVIOLI GPRRA20
RAVIOLI GPRRA24
RAVIOL SLIP RING NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于RAVIOLI滑環GPRRA1202的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for RAVIOL products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.aalatcr.cn.
RAVIOLI滑環GPRRA1202技術參數
