SIEMENS室溫傳感器QAA20系列技術參數
Technical data | |
Power supply | |
Operating voltage | refer to "Type summary" |
Frequency | 50/60 Hz at AC 24 V |
Power consumption | ≤1 VA |
Line lengths for measuring signal | |
Perm. cable lengths | |
Copper cable 0.6 mm dia. | 50 m |
Copper cable 1 mm2 | 150 m |
Copper cable 1.5 mm2 | 300 m |
Functional data | |
Measuring range | 0...50 °C (R2 = factory setting), |
Sensing element | Pt 1000 |
Time constant | approx. 7 min |
Measuring accuracy in the range of | |
?25...+25 °C | ±0.75 K |
?50...+50 °C | ±0.9 K |
Output signal, linear (terminal U1) | DC 0…10 V 0…50 °C or ?35...+35 °C or ?50...+50 °C max. ±1 mA |
Output signal, linear (terminal I1) Dummy load | 4…20 mA 0…50 °C or ?35...+35 °C or ?50...+50 °C refer to “Function” |
Protective data | |
Degree of protection of housing | IP 30 to IEC 529 |
Safety class | III to EN 60 730 |
Electrical connections | |
Connection terminals for | 1 × 2.5 mm2 or 2 × 1.5 mm2 |
Environmental conditions | |
Operation | IEC 721-3-3 |
Climatic conditions | class 3K5 |
Temperature (housing with electronics) | ?15...+50 °C |
Humidity | 0…95 % r. h. (non-condensing) |
Mechanical conditions | class 3M2 |
Transport | IEC 721-3-2 |
Cimatic conditions | class 2K3 |
Temperature | ?25...+70 °C |
Humidity | <95 % r. h. |
Mechanical conditions | class 2M2 |
Materials and colors | |
Housing front | ASA+PC, NCS S 0502-G (withe) |
Bottom | ASA+PC, NCS 2801-Y43R (grey) |
Base | PC, NCS 2801-Y43R (grey) |
Sensor (complete assembly) | silicone-free |

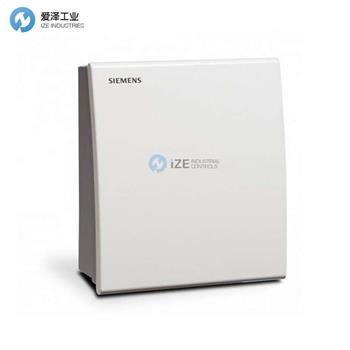

SIEMENS室溫傳感器QAA20系列產品介紹
這些裝置設計用于壁掛式安裝。 它們適用于大多數市售嵌入式接線盒。 電纜可以從后面（隱藏布線）或從下方或上方（表面布線）通過敲落開口引入。
該裝置由兩個主要部分組成：外殼和底板。 兩者咬合在一起，但可以再次分離。
測量電路、傳感元件和設定元件位于殼體內的印刷電路板上。
底板帶有連接端子。
? 用于獲取室溫的主動傳感器
? 工作電壓 AC 24 V 或 DC 13.5…35 V
? 信號輸出 DC 0...10 V 或 4...20 mA
The units have been designed for wall mounting. They are suitable for use with most commercially available recessed conduit boxes. The cables can be introduced from the rear (concealed wiring) or from below or above (surface-run wires) through knock-out openings.
The units consist of two major sections: Casing and baseplate. Both snap together but can be detached again.
The measuring circuit, the sensing element and the setting element are located on the printed circuit board inside the casing.
The baseplate carries the connecting terminals.
? Active sensors for acquiring the room temperature
? Operating voltage AC 24 V or DC 13.5…35 V
? Signal output DC 0...10 V or 4...20 mA
