GESTRA液位變送器NRGT26-2技術參數
Technical data | |
Design and mechanical connection | Thread ? - 14 NPT |
Permitted service pressure and temperature | 464 psi at 460 °F (32 bar at 238 °C) |
Materials | |
Terminal box: | 3.2581 G AlSi12, powder-coated |
Cover tube: | 1.4301 X5 CrNi 18-10 |
Electrode rod insulation: | PTFE |
Screw-in body: | 1.4404 / F316L |
Supply voltage | 24 V DC +/-20% SELV / PELV / CLASS2 |
Power consumption | Max. 7 W |
Current input | Max. 0.3 A |
Internal fuse | T2A |
Safety cutout at excessive ambient temperature | Cutout takes place at an excessive ambient temperature of Tamb. = 167 °F (75 °C) |
Analog output | 1 actual value output 4 - 20 mA, proportional to level, galvanically isolated |
Protection class | III Safety Extra Low Voltage (SELV / PELV / CLASS2) |
IP rating | NEMA type 3R, 3RX, 5 to NEMA 250 |
Permitted ambient conditions | |
Service temperature: | 32 - 158 °F (0 - 70 °C) |
Storage temperature: | -40 - 176 °F (-40 - 80 °C) |
Transport temperature: | -40 - 176 °F (-40 - 80 °C) |
Air humidity: | 10% - 95% (non-condensing) |
Weight (dependent on length of electrode) | NRGT 26-2 approx. 3.96 lb (1.8 kg) (with 11.81 inch (300 mm) measuring range) |

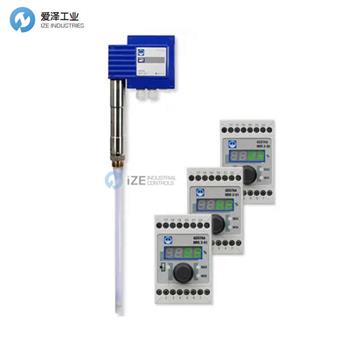

GESTRA液位變送器NRGT26-2產品介紹
NRGT 26-2 液位變送器可用于連續測量加壓蒸汽和熱水裝置或冷凝水和給水罐中的水位。 0% 到 100% 的校準測量范圍構成了 4-20 mA 電流輸出的線性曲線。
? 例如，通過合適的液位控制器，變送器的 4-20 mA 實際值輸出可用作帶 MIN/MAX 警報的水位控制器。
? 液位變送器安裝在加壓蒸汽鍋爐設備、儲罐、熱水設備進水管線的內部或外部液位罐中。 現場安裝的保護管確保功能可靠。
? 電容式NRGT 26-2 液位變送器可與導電NRG 1x-50 或NRG 1x-51 液位電極安裝在同一保護管或液位罐中。
The NRGT 26-2 level transmitter can be used to continually measure the water level in pressurized steam and hot-water plants, or in condensate and feedwater tanks. The calibrated measuring range from 0% to 100% constitutes the linear profile of the 4-20 mA current output.
? With a suitable level controller, the transmitter’s 4-20 mA actual value output can be used as a water level controller with MIN/MAX alarm, for example.
? Level transmitters are installed on the inside of pressurized steam boiler plants, tanks, feed lines of hot-water plants, or in external level pots. A protective tube installed on site ensures reliable function.
? A capacitive NRGT 26-2 level transmitter can be installed in the same protective tube or level pot as a conductive NRG 1x-50 or NRG 1x-51 level electrode.
GESTRA液位變送器NRGT系列其他常用型號：
GESTRA NRGT 26-1
GESTRA NRGT 26-1S
GESTRA NRGT 26-2
GESTRA NRGT 26-2S
