以太網供電（PoE）技術白皮書：標準、應用與未來趨勢（中英文）

概述

Overview

隨著從交通路口機柜到燈桿等各種互聯設備的日益普及，以太網供電 (PoE) 的需求也隨之激增。PoE 技術允許通過單根以太網線纜傳輸數據和電力，從而減少了對獨立電源的需求。本文探討了 PoE 的優勢、技術細節和常見用例，并強調了其在現代基礎設施和物聯網應用中日益增長的重要性。敬請關注 PoE 如何改變各行各業的連接方式。

With the growing proliferation of connected devices, ranging from traffic intersection cabinets to light poles, the demand for Power over Ethernet (PoE) has surged. PoE technology allows both data and power to be transmitted through a single Ethernet cable, reducing the need for separate power sources. This article explores the benefits, technical aspects, and common use cases of PoE, highlighting its increasing importance in modern infrastructure and IoT applications. Stay informed on how PoE is transforming connectivity across industries.

PoE 的基礎知識和優勢

The Basics and Benefits of PoE

以太網供電 (PoE) 技術可通過單根以太網線纜同時傳輸電力和數據，無需單獨的電源線。這簡化了安裝過程，尤其是在難以觸及的區域，并且允許企業使用現有的 Cat5 至 Cat6a 線纜，而無需對基礎設施進行改造。PoE 的高效性簡化了網絡設置，降低了成本，并改善了安全攝像頭、接入點和物聯網設備等設備的連接性。下圖展示了 PoE 連接與使用單獨電源線和數據線的非 PoE 連接的工作原理對比。

Power over Ethernet (PoE) technology enables both power and data transmission through a single Ethernet cable, eliminating the need for separate power wiring. This simplifies installation, especially in hard-to-reach areas, and allows businesses to use existing Cat5 to Cat6a cabling without infrastructure modifications. PoE’s efficiency streamlines network setups, reducing costs and improving connectivity for devices like security cameras, access points, and IoT devices. Below shows how a PoE connection would work compared to a non-PoE connection that uses separate power and data wiring.

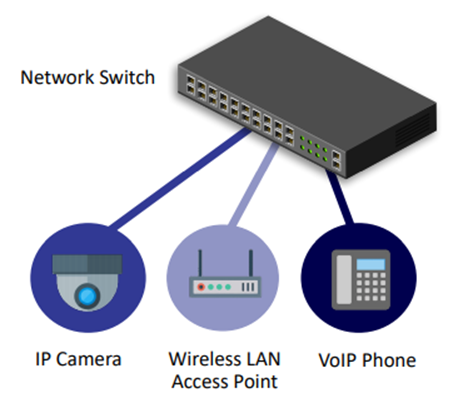

在 PoE 應用中，PSE（供電設備）為 PD（受電設備）供電。一個常見的例子是連接到 PoE 交換機 (PSE) 的 IP 攝像頭 (PD)。

In a PoE application, a PSE (power sourcing equipment) provides power to a PD (powered device). A common example would be an IP camera (PD) connected to a PoE switch (PSE).

PoE 的主要優勢

? 節省成本和時間：無需電工或單獨布線，降低安裝成本和時間。

? 安裝靈活性：設備可放置在距離電源最遠 100 米的位置，實現靈活的設置。

? 可擴展性：可根據需要輕松添加 PoE 設備，并通過網線直接供電。

Key Benefits of PoE

? Cost and Time Savings: No need for electricians or separate power wiring, reducing installation costs and time.

? Installation Flexibility: Devices can be placed up to 100 meters from the power source, allowing for versatile setups.

? Scalability: Easily add PoE devices as needed, powered directly through network cables.

PoE 市場與應用

PoE Markets and Applications

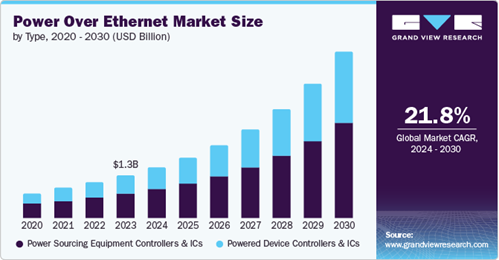

各種市場趨勢數據表明，PoE 的使用量逐年增長。

Various market trend data has shown that the PoE usage continues to grow year over year.

以太網供電 (PoE) 技術的快速發展可歸因于幾個關鍵因素，這些因素正在重塑設備的供電和管理方式。其中一個最重要的驅動因素是兼容 PoE 的設備數量的不斷增長。PoE 最初用于為 IP 攝像頭供電，現在支持各種設備，包括接入點、智能照明、傳感器等等。這種擴展的兼容性使 PoE 成為各行各業的必備解決方案，提供了一種經濟高效的方式，通過單根線纜傳輸電力和數據。

PoE 興起的另一個主要因素是其供電功率的顯著提升。在過去的二十年中，PoE 的供電功率已從 4W 飆升至 90W，為更復雜的設備供電開辟了新的可能性。隨著數據速度的不斷提高，越來越多的聯網設備將采用 PoE，這使得 PoE 對企業來說更具吸引力。能夠?yàn)楦鼜V泛的設備（包括需要更高功率的設備）供電，是 PoE 成為現代網絡基礎設施不可或缺的一部分的原因之一。

PoE 的日益普及也促成了多個 IP 設備在集中管理系統下的融合。這種轉變使企業能夠通過一個統一的平臺控制各種系統，例如照明、暖通空調、門禁、監控、傳感器、數字標牌、Wi-Fi 和 VoIP。集中管理可提高效率、增強可擴展性并節省成本，使 PoE 成為智能樓宇解決方案和物聯網生態系統的關鍵組成部分。隨著 PoE 技術的不斷發展，其在現代基礎設施供電和管理中的作用將不斷擴展，為企業提供滿足其網絡需求的面向未來的解決方案。

The rapid growth of Power over Ethernet (PoE) technology can be attributed to several key factors that are reshaping the way devices are powered and managed. One of the most significant drivers is the increasing number of PoE-compatible devices. Initially used for powering IP cameras, PoE now supports a wide array of devices, including access points, smart lighting, sensors, and more. This expanded compatibility has made PoE an essential solution for a variety of industries, providing a cost-effective and efficient way to deliver both power and data over a single cable.

Another major factor contributing to the rise of PoE is the significant increase in the power it can deliver. Over the past two decades, PoE power delivery has surged from just 4W to as much as 90W, opening up new possibilities for powering more complex devices. As data speeds continue to increase, more networked devices will incorporate PoE, making it an even more attractive option for businesses. The ability to power a wider range of devices, including those requiring higher wattages, is one of the reasons PoE has become integral to modern network infrastructure.

The growing adoption of PoE has also resulted in the convergence of multiple IP devices under centralized management systems. This shift enables businesses to control various systems, such as lighting, HVAC, access control, surveillance, sensors, digital signage, Wi-Fi, and VoIP, all from one unified platform. Centralized management offers enhanced efficiency, scalability, and cost savings, making PoE a key component of smart building solutions and IoT ecosystems. As PoE technology continues to evolve, its role in powering and managing modern infrastructure will only expand, offering businesses a future-proof solution for their networking needs.

主動 PoE 與被動 PoE

Active PoE vs. Passive PoE

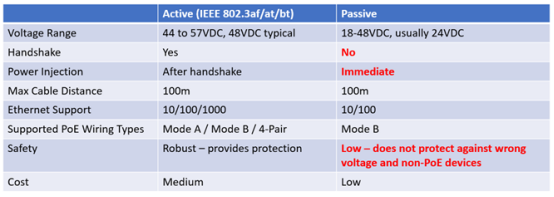

如前所述，PoE 供電是通過傳輸數據的同一根線纜進行的。PoE 協議有兩種：主動 PoE 和被動 PoE。下表列出了主動 PoE 和被動 PoE 之間的區別。

As mentioned previously, PoE provides power over the same cabling used for data. There are two types of PoE protocols – active and passive. Below is a comparison table of the differences between active and passive PoE.

主動式 PoE 為插入 PoE 端口的非 PoE 設備提供保護。如果端口為被動式 PoE，則無論設備是否支持 PoE，它都會為其供電。

Active PoE provides protection for non-PoE devices that get plugged into a PoE port. If a port is passive PoE, it will provide power to the device regardless of it being PoE-enabled or not.

PoE流程

PoE Process

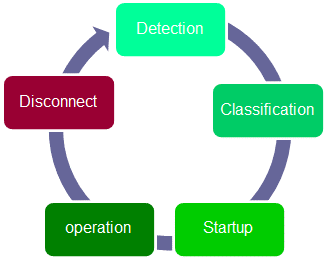

那么，主動式 PoE 如何為啟用主動式 PoE 的設備供電呢？

1. 當設備 (PD) 插入時，PSE 會檢測 PD 是否具有正確的電阻值，以便將其正確歸類為 PoE 設備。

2. 根據 PD 的類別特征，對 PD 進行分類以確定其額定功耗。

3. 在啟動期間，PSE 會根據 PD 的類別，將浪涌電流限制在適當?shù)闹怠?/p>

4. PSE 會定期與 PD 執行“保持連接”功能，以維持其正常運行。

5. 當 PD 與 PSE 斷開連接時，PSE 必須在線纜斷開后的 15-20 毫秒內移除電壓。

So then, how does active PoE provide power to a device that is active PoE enabled?

1. When a device (PD) is plugged in, the PSE will detect if the PD has the correct resistance value to correctly categorize it as a PoE device.

2. The PD will be classified to determine its rated power consumption, based on its class signature.

3. During startup, the PSE will limit the inrush current with the appropriate value based on the PD class.

4. The PSE will periodically perform a keep alive function with the PD to maintain operation.

5. When a PD is disconnected from the PSE, the PSE must remove voltage within 15-20ms of the cable being disconnected.

PoE 標準

PoE Standards

在上面的主動與被動 PoE 對比表中，主動 PoE 指的是 IEEE 802.3af/at/bt。這些標準由 IEEE 組織定義。這些標準按類型定義，并根據每個類別分配相應的功率。PoE 共有 4 種類型，由 8 個等級組成。

802.3af = 1型，1-3級

802.3at = 2型，4級

802.3bt = 3型和4型，5-8級

下表顯示了每個等級 PSE 可提供的功率以及 PD 接收的最小功率。

In the Active vs. Passive comparison table above, Active PoE is referring to IEEE 802.3af/at/bt. These are standards defined by the IEEE organization. These standards are defined by types with the amount of power that’s provided allocated per class. There are 4 types, made up by 8 classes.

802.3af = Type 1, Class 1-3

802.3at = Type 2, Class 4

802.3bt = Types 3&4, Class 5-8

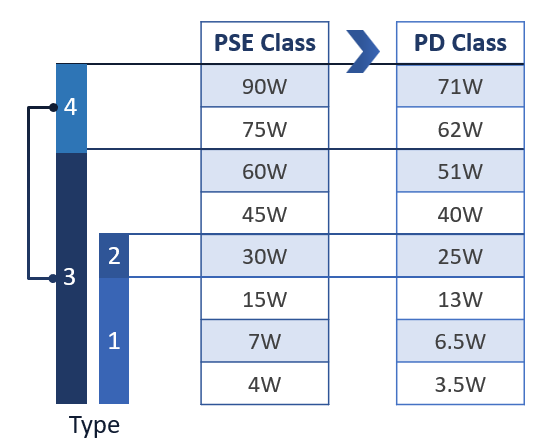

The chart below shows the power that the PSE can provide along with the minimum power that the PD receives, per class.

五類或六類網線有 4 對線。

802.3af 和 802.3at 標準使用 2 對線。引腳排列有兩種可能的模式（A 和 B）。在這兩種模式下，電源部分均不使用 4 對線。下圖顯示了這兩種模式的引腳排列。

In a cat5 or cat6 cable, there are 4 pairs of wires.

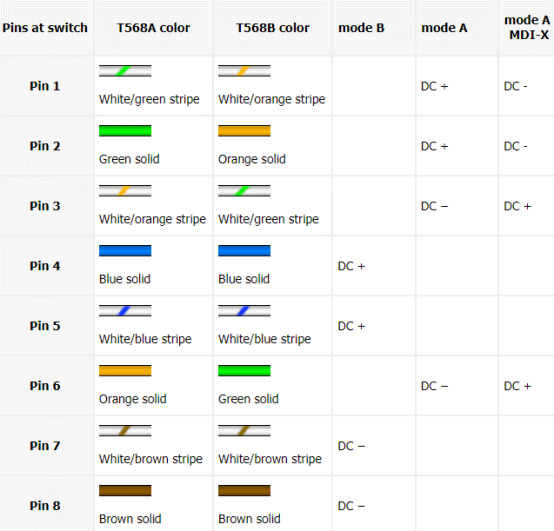

802.3af and 802.3at operate over 2 pairs of the wires. There are 2 possible modes (A and B) for the pinouts. In both modes, 4 wires are not utilized for the power portion. The diagram below shows the pinouts for both modes.

802.3bt 通過 4 對線運行。在這種情況下，所有 4 對線都用于供電。與 802.3af/at 相比，802.3bt 主要有四項改進：

? 支持 Type 3 (60W) 和 Type 4 (90W)

? 支持雙特征 PD。這意味著設備可以擁有兩個獨立的檢測和分類電路。這對于帶加熱器的 IP 攝像頭等設備非常有用。

? 更低待機功率 – 最小待機功率為 20mW，比 802.3at 的 200mW 低 10 倍。這可以節省大量能源，尤其是在 PoE LED 照明領域。

? 自動分類 – 向 PD 輸送的最小功率為 71W，但 PSE 可以自動檢測 PD 的實際最大功耗并進行相應調整。

802.3bt operates over 4 pairs of wires. In this case, all 4 pairs are used to deliver power. There are 4 main improvements made in 802.3bt, compared to 802.3af/at:

? Support for Type 3 (60W) and Type 4 (90W)

? Support for dual-signature PDs. This means that a device can have two separate detection and classification circuits. This would come in useful for a device such as an IP camera with a heater.

? Lower standby power – minimum standby power is 20mW, which is 10 times lower than the value for 802.3at, which is at 200mW. This can save a lot of energy, especially in PoE LED lighting.

? Autoclass – a minimum of 71W is delivered to the PD, but the PSE can automatically detect the actual max power drawn by the PD and adjust accordingly.

補充說明

Additional Notes

以下是需要了解的重要因素：

? PD 功率 – 請務必參考傳輸至 PD 的功率，而不是 PSE 的輸出功率。例如，如果攝像機需要 28W 的功率，那么使用 802.3at 標準為攝像機供電是不夠的，因?yàn)?PSE 的輸出功率為 30W，而傳輸至 PD 的功率僅為 25.5W。

? 電壓 – 對于需要直流輸入才能啟動的 PSE 設備，請注意不同標準的輸入電壓范圍。例如，Type 4 要求的電壓范圍為 52V 至 57V。48V 電源非常常見，這意味著電源至少需要能夠升壓至 52V 才能為 802.3bt PD 供電。下表列出了每種類型所需的電壓范圍：

Below are important factors to know:

? PD power – Make sure to refer to the power that is delivered to the PD, rather than the power that is output from the PSE. For example, if a camera needs 28W of power, it will not be sufficient to power the camera with 802.3at, which outputs 30W from the PSE, but only 25.5W is delivered to the PD.

? Voltage – for PSE devices that require a DC input to power up, be aware of the input voltage range of the different standards. For example, Type 4 requires a voltage range of 52 – 57VDC. 48VDC power supplies are very common, which means that the power supply needs to be able to be cranked up to 52V at a minimum to be able to power up an 802.3bt PD. Below is a table of the voltage ranges needed for each Type:

? 專有協議——在 IEEE 批準 802.3bt 標準之前，有些設備所需的功率超過了 802.3at 標準 (30W) 所能提供的功率。當時開發了幾種專有協議來解決這個問題。這些協議主要以注入器的形式實現。其基本工作原理是，協議將協商為 802.3at 標準，但不是通過 2 對線供電，而是通過 4 對線供電，從而使 PSE 的供電功率高于 30W。

? 向后兼容——所有 IEEE PoE 標準/協議均向后兼容。歸類為 802.3af PD 的設備仍可在 802.3bt PSE 上正常工作。

? Proprietary protocols – before 802.3bt was ratified by IEEE, there were devices that required more power than what 802.3at (30W) could provide. There were several proprietary protocols that were developed at that time to handle this issue. This was implemented mostly in the form of an injector. The basic mechanism of the operation was that the protocol would be negotiated to be 802.3at, but instead of delivering power over 2 pairs, it would deliver power over 4 pairs, allowing the power to be higher than 30W out of the PSE.

? Backward compatibility – all IEEE PoE standards/protocols are backward compatible. A device classified as an 802.3af PD will still work without any issue on an 802.3bt PSE.

托管型 PoE 交換機功能

Managed PoE Switch Features

PoE 交換機是最常見的供電設備 (PSE) 類型之一，托管型 PoE 交換機比非托管型交換機提供更多高級功能。非托管型 PoE 交換機本質上是即插即用設備，而托管型 PoE 交換機則能夠同時配置網絡和交換機本身。例如，EtherWAN Systems 的托管型 PoE 交換機提供了專門為優化 PoE 功能而設計的額外配置選項。

? PoE 調度 – 托管型 PoE 交換機支持高級 PoE 調度功能，允許用戶配置單個 PoE 端口在特定日期和時間供電。這種靈活的調度功能可幫助企業優化用電情況，并通過僅在需要時為設備供電來降低能耗。

? 專有模式 – 該模式允許高功率受電設備 (PD) 通過 PoE 端口以高于 30W 的功率供電，同時仍協商為 802.3at 標準。此功能非常適合需要更高功率的設備，可確保高效可靠的性能。

? PoE 看門狗和恢復 – PoE 看門狗和恢復功能允許將單個 PoE 端口配置為 ping 連接的 PoE 設備。如果設備在指定時間內未響應，端口將自動重啟，從而有效地完成設備的電源循環。這種自我修復功能無需人工干預即可恢復設備，從而顯著減少停機時間并最大限度地降低維護成本（例如上門服務的需求）。

One of the most common Power Sourcing Equipment (PSE) types is the PoE switch, with managed PoE switches offering more advanced features compared to unmanaged switches. While an unmanaged PoE switch is essentially a plug-and-play device, a managed PoE switch provides the ability to configure both the network and the switch itself. A managed PoE switch from EtherWAN Systems, for example, offers additional configuration options specifically designed to optimize PoE functionality.

? PoE scheduling – Managed PoE switches enable advanced PoE scheduling, allowing users to configure individual PoE ports to provide power on specific days and times. This scheduling flexibility helps organizations optimize power usage and reduce energy consumption by powering devices only when needed.

? Proprietary mode – this allows high-power Powered Devices (PDs) to be powered by PoE ports at greater than 30W, while still being negotiated as 802.3at. This feature is ideal for devices that require higher power, ensuring efficient and reliable performance.

? PoE watchdog and recovery – The PoE watchdog and recovery feature allows individual PoE ports to be configured to ping connected PoE devices. If a device fails to respond within a specified time, the port will automatically reboot, effectively power cycling the device. This self-healing capability can recover devices without the need for manual intervention, significantly reducing downtime and minimizing maintenance costs, such as the need for truck rolls.

結論

Conclusion

隨著 PoE 標準的不斷擴展，將會有新的設備和應用利用這些新技術。PoE 將穩步普及，比以往任何時候都更加普及。EtherWAN 的強化級 PoE 交換機系列能夠滿足最新的 802.3bt 標準，即使在極端溫度（-40°F 至 167°F 環境溫度）下也能不間斷運行，并具備專有模式和 PoE 看門狗等優質功能。

As PoE standards continue to expand, there will be new devices and applications to take advantage of the new technologies. PoE will steadily become more widespread than ever. EtherWAN’s range of hardened-grade PoE switches provide power to handle the latest 802.3bt standard, uninterrupted operation even in extreme temperatures (-40F to 167F ambient), and quality of life features such as proprietary mode and PoE watchdog.
