ITU-T G.8032/ERPS協議介紹（中英文）
G.8032/ERPS標準概述
Overview of the G.8032/ERPS Standard
G.8032/ERPS（以太網環路保護切換）是由國際電信聯盟電信標準化部門 (ITU-T) 制定的標準化協議，旨在為二層以太網環路拓撲提供快速可靠的保護切換機制。當鏈路或節點發生故障時，ERPS 可確保在 50 毫秒內無縫切換到備份路徑，從而保持數據傳輸不間斷，確保網絡服務持續可用。
ERPS 利用 R-APS（環路自動保護切換）協議持續監控網絡狀態并管理切換過程。RPL（環路保護鏈路）機制的集成可有效防止網絡環路和廣播風暴，從而增強網絡整體穩定性。此設計可在需要時快速切換到備份路徑，從而確保數據傳輸?shù)捻槙场?/p>
G.8032/ERPS 的運行由對網絡節點和鏈路狀態的持續監控驅動。一旦檢測到主鏈路故障，系統會立即激活預定義的備份路徑，確保數據流不中斷。雖然恢復時間可能因網絡規模和 R-APS 數據包處理量等因素而異，但典型的切換時間在 50 毫秒以內，標準范圍為 10 至 500 毫秒。
對于要求高可用性和實時恢復的應用，例如工業自動化、智能交通和企業骨干網，G.8032/ERPS 提供了一種高效、經濟且易于部署的環形網絡冗余解決方案。
G.8032/ERPS (Ethernet Ring Protection Switching) is a standardized protocol developed by the International Telecommunication Union Telecommunication Standardization Sector (ITU-T), designed to provide a fast and reliable protection switching mechanism for Layer 2 Ethernet ring topologies. In the event of a link or node failure, ERPS ensures seamless failover to a backup path within 50 milliseconds, maintaining uninterrupted data transmission and ensuring continuous network service availability.
ERPS utilizes the R-APS (Ring Automatic Protection Switching) protocol to continuously monitor the status of the network and manage the switching process. The integration of the RPL (Ring Protection Link) mechanism effectively prevents network loops and broadcast storms, thus enhancing overall network stability. This design guarantees smooth data transmission by enabling rapid failover to a backup path whenever required.
The operation of G.8032/ERPS is driven by continuous monitoring of both network nodes and link status. Upon detecting a failure in the primary link, the system immediately activates a predefined backup path, ensuring that data flow remains uninterrupted. While recovery time may vary depending on factors such as network size and R-APS packet processing volume, the typical switching time is under 50 milliseconds, with a standard range of 10 to 500 milliseconds.
For applications demanding high availability and real-time recovery, such as industrial automation, smart transportation, and enterprise backbone networks, G.8032/ERPS delivers an efficient, cost-effective, and easily deployable ring network redundancy solution.
技術概念和拓撲架構
Technical Concepts and Topology Architecture
ERPS的設計基于環網拓撲的高可用性和快速恢復能力。其運行機制基于 ITU-T G.8032 標準，利用協議消息交換和拓撲控制策略實現實時故障檢測和自動網絡恢復。此外，ERPS 支持多種環網架構，為復雜的網絡設計提供靈活的解決方案。
The design of ERPS is built on high availability and rapid recovery capabilities within a ring network topology. Its operational mechanism is based on the ITU-T G.8032 standard, leveraging protocol message exchange and topology control strategies to enable real-time fault detection and automatic network recovery. Additionally, ERPS supports a variety of ring network architectures, offering flexible solutions for complex network designs.
1. 協議與機制
Protocol and Mechanism
ERPS 使用專用協議消息（R-APS）進行實時網絡狀態通信，包括信號故障 (SF)、無請求 (NR) 和 RPL 阻塞 (RB) 等消息類型。當環網中任何一條鏈路發生故障時，ERPS 會立即將該鏈路標記為故障，并激活 RPL（環保護鏈路）端口（默認設置為阻塞狀態）完成流量重路由。故障清除后，系統會根據配置的模式（可恢復或不可恢復）決定是否恢復到原始路徑。
在正常運行條件下，RPL 所在節點的端口被設置為阻塞狀態，以防止環路拓撲中出現環路和廣播風暴。此阻塞機制不會影響正常的數據傳輸，并且僅在必要時激活備份路徑，從而確保最佳的網絡性能和穩定性。
ERPS utilizes a dedicated protocol message (R-APS) for real-time network status communication, including message types such as Signal Fail (SF), No Request (NR), and RPL Blocked (RB). When any link within the ring network experiences a failure, ERPS immediately marks the link as faulty and activates the RPL (Ring Protection Link) port, which is set to a blocked state by default, to complete traffic rerouting. Once the fault is cleared, the system can decide whether to revert to the original path based on the configured mode (Revertive or Non-Revertive).
Under normal operating conditions, the port on the node where the RPL resides is set to the blocked state to prevent loops and broadcast storms within the ring topology. This blocking mechanism does not affect regular data transmission and only activates the backup path when necessary, ensuring optimal network performance and stability.
2. 應用與拓撲
Application and Topology

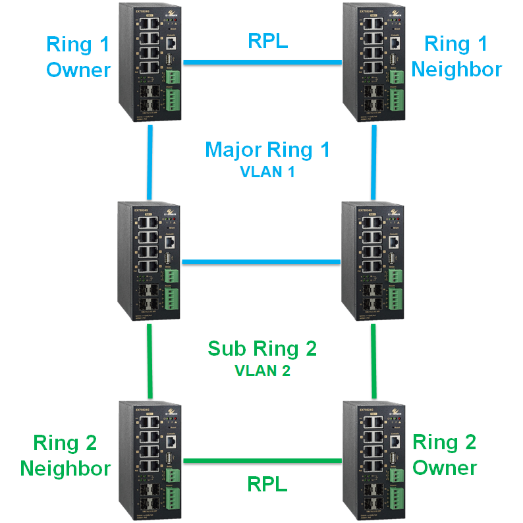

ERPS 支持多種環網拓撲結構。其核心拓撲類型包括主環、子環和互聯環，高級應用模型可擴展到多環和負載均衡。
? 主環作為網絡的核心骨干，連接多個節點，并將 RPL 配置為主備份路徑。它非常適合需要傳輸大量關鍵流量、對穩定性和恢復時間要求較高的場景。
? 子環嵌套在主環內，通過虛擬通道互聯，提供獨立的保護功能。它適用于區域或分支網絡部署，增強網絡模塊化和管理效率。
? 互聯環由多個 ERPS 環通過互聯節點連接而成。不同的實例和 VLAN 用于隔離控制報文，防止報文干擾。此拓撲結構適用于大規?；蚨鄬泳W(wǎng)絡架構。
ERPS supports a variety of ring network topologies. Its core topology types include Major Ring, Sub-Ring, and Interconnected Ring, with advanced application models extending to multiple rings and load balancing.
? Major Ring serves as the core backbone of the network, connecting multiple nodes and configuring RPL as the primary backup path. It is ideal for scenarios requiring the transmission of large volumes of critical traffic, with high demands for stability and recovery time.
? Sub-Ring is nested within the Major Ring, interconnected via virtual channels, providing independent protection capabilities. It is suited for regional or branch network deployments, enhancing network modularity and management efficiency.
? Interconnected Ring consists of multiple ERPS rings connected through interwoven nodes. Different instances and VLANs are used to separate control messages, preventing message interference. This topology is suitable for large-scale or multi-layered network architectures.
此外，ERPS 還支持多種高級拓撲設計：
? 單環拓撲：最基本的 ERPS 架構，適用于小型企業或數據中心。
? 多環拓撲：支持多個獨立環共存，增強冗余性和靈活性，非常適合大型工業設施或智能交通系統等應用。
? 負載均衡環拓撲：實施流量分配機制，實現鏈路負載均衡，從而提高性能和可用性。
In addition, ERPS supports various advanced topology designs:
? Single Ring Topology: The most basic ERPS architecture, suitable for small enterprises or data centers.
? Multiple Ring Topology: Enables the coexistence of multiple independent rings, enhancing redundancy and flexibility—ideal for applications such as large-scale industrial facilities or intelligent transportation systems.
? Load-Balanced Ring Topology: Implements traffic distribution mechanisms to achieve link load balancing, thereby improving performance and availability.
這些拓撲設計可以根據實際部署需求靈活組合，提供高可靠、可擴展、高效的網絡冗余解決方案。
These topology designs can be flexibly combined based on actual deployment requirements, offering a highly reliable, scalable, and efficient network redundancy solution.
3. 特性與優勢
Features and Advantages
ERPS 的設計融合了高性能和標準化協議機制，具有以下關鍵技術優勢：
? 快速恢復與收斂
ERPS 采用 R-APS 協議進行實時監控和自動切換。檢測到鏈路或節點故障后，可在 50 毫秒內重新路由流量，從而最大限度地減少數據包丟失并降低服務中斷的風險。
? 環路保護與穩定傳輸
為了防止環形拓撲中的環路和廣播風暴，ERPS 使用環路保護鏈路 (RPL) 機制阻塞特定端口。它還利用基于 VLAN 的流量隔離來確保穩定安全的數據傳輸。
? 標準化與互操作性
ERPS 支持不同品牌交換機之間的互操作性，從而降低部署和集成成本。這使您的網絡部署能夠適應多供應商交換機設備的使用。
? 靈活的拓撲支持
ERPS 支持多種環形拓撲結構，具有多實例和 VLAN 隔離功能，可實現流量隔離和獨立運行。G.8032 v2 增加了對多環和階梯形拓撲結構的支持，增強了部署靈活性。
ERPS is designed with a combination of high performance and standardized protocol mechanisms, offering the following key technical benefits:
? Fast-Recovery and Convergence
ERPS utilizes the R-APS protocol for real-time monitoring and automatic switching. Upon detecting a link or node failure, traffic can be rerouted within 50 milliseconds, minimizing packet loss and reducing the risk of service disruption.
? Loop-Protection and Stable-Transmission
To prevent loops and broadcast storms in ring topologies, ERPS blocks specific ports using the Ring Protection Link (RPL) mechanism. It also leverages VLAN-based traffic isolation to ensure stable and secure data transmission.
? Standardization and Interoperability
ERPS supports interoperability between switches of different brands, thus reducing deployment and integration costs. This enables your network deployment to adapt to the use of multi-vendor switch equipment.
? Flexible Topology Support
ERPS supports diverse ring topologies with multi-instance and VLAN separation, enabling traffic isolation and independent operation. G.8032 v2 adds support for multi-ring and ladder topologies, enhancing deployment flexibility.
ERPS 與 RSTP 比較
ERPS vs. RSTP
ERPS 在收斂速度、拓撲靈活性、恢復模式和管理功能方面均具有明顯優勢，是現代高可用性網絡的首選。
ERPS offers clear advantages in convergence speed, topology flexibility, recovery modes, and management capabilities, making it a preferred choice for modern, high-availability networks.
協議 | 主要功能 | 案例 | 局限性 |
ERPS | 故障轉移時間< 50ms 支持多環和梯形拓撲 ITU-T 標準，供應商互操作性 支持可恢復和非可恢復模式 | 電信、工業和數據中心網絡 復雜、高可用性設計 | 建議：每個環少于 16 個節點 配置更復雜 |
RSTP | 收斂速度在數百毫秒到數秒內 設置簡單，符合 IEEE 標準，兼容性高 | 中小型網絡 多供應商環境 | 恢復速度較慢 僅限于樹形拓撲 無恢復模式 |
Protocol | Key Features | Use Cases | Limitations |
ERPS | < 50ms failover Supports multi-ring and ladder topologies ITU-T standard, vendor interoperability Supports both revertive and non-revertive modes | Telecom, industrial, and data center networks Complex, high-availability designs | Recommended: less than 16 nodes per ring More complex configuration |
RSTP | Convergence in hundreds of ms to seconds Simple setup, IEEE standard, high compatibility | Small to mid-sized networks Multi-vendor environments | Slower recovery Limited to tree topologies No recovery mode |
應用場景與部署
Application Scenarios and Deployment
ERPS 廣泛應用于對網絡穩定性和快速恢復能力要求較高的環境，包括：
? 智慧城市：部署于交通信號燈、監控攝像頭、智能路燈和環境傳感器等場景。主環路連接主要道路，子環路連接交叉路口設備，確保即使在鏈路故障時數據流也能不間斷。
? 工業自動化：以彈性環形拓撲連接 PLC、傳感器和控制系統，并支持自動故障切換到備份路徑，確保生產運行穩定。
? 智能交通：主環路沿高速公路或鐵路鋪設，連接收費站、監控點和交通檢測器。虛擬通道支持跨環通信，從而提高可用性和管理性。
? 數據中心：采用單環或子環拓撲結構，確保高速數據交換和快速恢復。
? 智能電網：采用多環和負載均衡拓撲結構，保障電力系統的實時監控和安全控制。
ERPS is widely adopted in environments requiring high network stability and rapid recovery, including:
? Smart Cities: Deployed in traffic signals, surveillance cameras, smart streetlights, and environmental sensors. Main rings follow major roads, while sub-rings connect intersection devices, ensuring uninterrupted data flow even during link failures.
? Industrial Automation: Connects PLCs, sensors, and control systems in a resilient ring topology. Enables automatic failover to backup paths, ensuring stable production operations.
? Intelligent Transportation: Main rings run along highways or railways, linking toll stations, monitoring points, and traffic detectors. Virtual channels enable cross-ring communication for improved availability and management.
? Data Centers: Uses single or sub-ring topologies to ensure high-speed data exchange and fast recovery.
? Smart Grids: Employs multi-ring and load-balanced topologies to guarantee real-time monitoring and secure control of power systems.
EtherWAN 工業級網管型以太網交換機，支持 ERPS 環網保護交換
EtherWAN Industrial Managed Ethernet Switch with ERPS Support
EtherWAN 的工業級網管型以太網交換機支持 ERPS（以太網環網保護交換），可實現無縫數據傳輸和快速鏈路恢復。EtherWAN 的 ERPS 解決方案專為智能工廠、工業自動化和交通監控等高可用性應用而設計，具有快速恢復、靈活部署和強大的互操作性，是關鍵任務網絡的理想選擇。
EtherWAN’s industrial-grade managed Ethernet switches support ERPS (Ethernet Ring Protection Switching), enabling seamless data transmission and rapid link recovery. Designed for high-availability applications such as smart factories, industrial automation, and traffic surveillance, EtherWAN’s ERPS solution delivers fast recovery, flexible deployment, and robust interoperability—making it an ideal choice for mission-critical networks.
主要特點：
Key Features:
? 符合 ITU-T G.8032 ERPS v2 標準，支持單環、主環、子環和互聯環等多種拓撲結構。
? 支持可恢復和非可恢復模式，以及手動切換功能，實現靈活的管理和故障模擬測試。
? 通過智能端口阻塞機制，防止環形拓撲中的網絡環路和廣播風暴。
? 實現低于 50 毫秒的網絡恢復，最大限度地減少鏈路或節點故障期間的數據包丟失。
? 可與多廠商設備互操作，實現跨異構網絡環境的 ERPS 無縫運行。
? Compliant with ITU-T G.8032 ERPS v2, supporting various topologies including single ring, major ring, sub-ring, and interconnected ring structures.
? Supports Revertive and Non-Revertive modes, along with manual switching for flexible management and fault simulation testing.
? Prevents network loops and broadcast storms in ring topologies through intelligent port blocking mechanisms.
? Enables sub-50ms network recovery, minimizing packet loss during link or node failures.
? Interoperable with multi-vendor devices, allowing seamless ERPS operation across heterogeneous network environments.
