美國MELTRIC插座DSN20系列 示例A48327-000 63-18043
Meltric 63-18043 DSN20插入式插座的額定電壓為480V和20A。接線能力為14-12 AWG，溫度范圍為-40°F至140°F。它具有藍色熱塑性聚酯體和銀鎳觸點。外殼用玻璃纖維增強以增加其抗沖擊性，同時還承受化學和紫外線輻射環境。 4X型液密性設計，防護等級IP 66 / IP 67， UL認證。注：圖片僅供參考，實際部分可能會有所不同。
作為MeltricDecontactor系列電源連接器的一部分，63-18043通過大大降低電弧閃光的風險提供最佳安全性。由于耐用的結構，更換成本更低，因此成為具有成本效益的解決方案。 DSN系列還具有輕便，節省空間的設計。由于連接到相應插座時的防水結構，它非常適合工業環境中的潮濕或沖洗應用。此電源連接器具有即插即用功能，可快速輕松地斷開連接，通過減少停機時間實現更高效的操作。

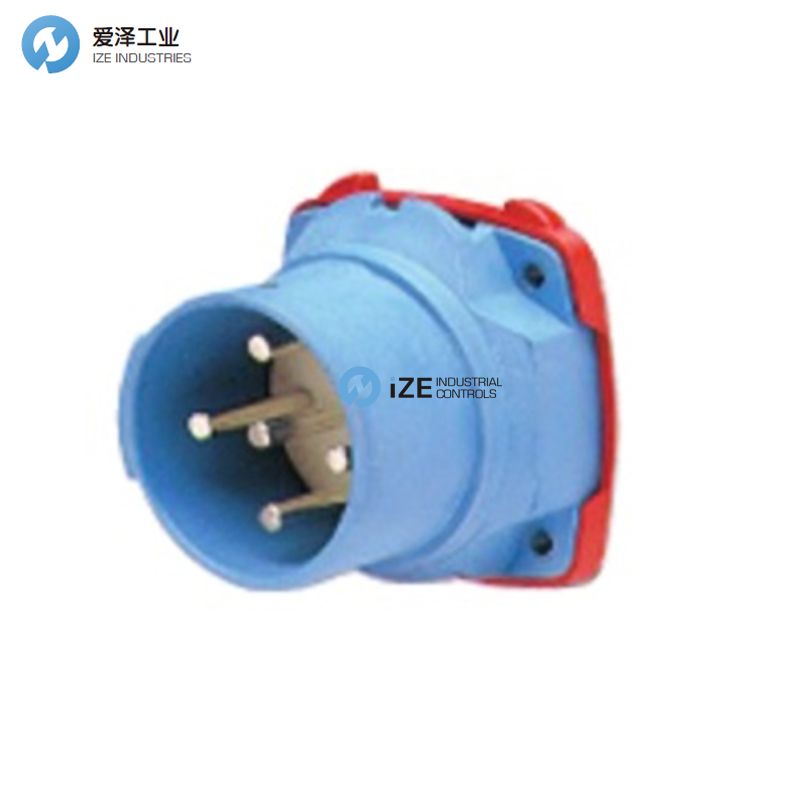

The Meltric 63-18043 DSN20 male inlet is rated for 480V and 20A. It features 3 Poles plus ground, with a wiring capacity of 14-12 AWG and a temperature range of -40 F to 140 F. It has a blue thermoplastic polyester body with silver-nickel contacts. The housing is reinforced with fiberglass to increase its impact resistance, while also withstanding chemical and UV radiation exposure. Type 4X for liquid tightness, rated IP 66 / IP 67. UL listed. Note: Image is for reference, actual part may differ.
The 63-18043, part of the MeltricDecontactor series of power connectors, provides optimum safety by greatly reducing the risk of arc flash. There are fewer replacement costs thanks to the durable construction, making it a cost effective solution. The DSN series also features lightweight, space saving designs. It is perfect for wet or washdown applications in industrial environments, due to the watertight construction when attached to the corresponding receptacle. This power connector features plug and play capability for a quick and easy disconnect, making for a more efficient operation by having less downtime.

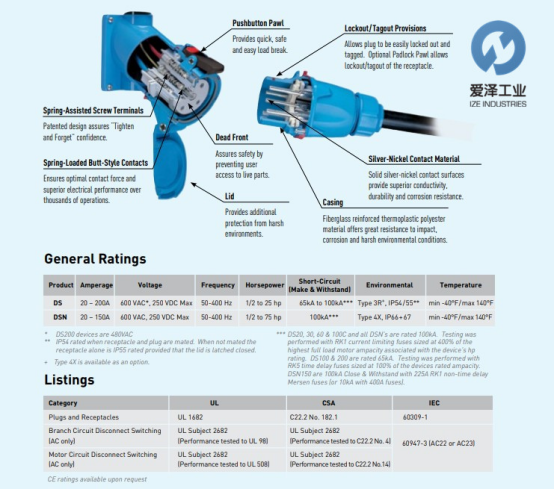

Specifications
Rated Voltage- 480V AC
Rated Current- 20A
Overall Dimensions- 2.2" x 2.36" x 2.45"
Polarity- 3 Pole + Ground
Switch Rating (AC only)- Branch Circuit & Motor Circuit Disconnect Switching
Horsepower Rating- 3? 5 hp
Short Circuit Rating- 100kA Close & Withstand
Temperature Range- -40 F to 140 F (-40 C to 60 C)
Wiring Capacity- 14-12 AWG
Terminal Type- Screw
Environmental Rating- Type 4X, IP 66 / IP 67
Listings- UL, CSA, IEC
美國MELTRIC插座DSN20系列 示例A48327-000 63-18043
In the early 1950’s Gilles Marechal witnessed an industrial accident that occurred when a defective motor was plugged in. The seriousness of the accident caused Mr. Marechal to embark on a mission to develop an industrial duty plug and receptacle that would eliminate the hazards posed by ordinary pin and sleeve devices.
The result was the establishment of the Marechal Corporation and the creation of a safety focused product line that is now manufactured and sold in North America by the MELTRIC Corporation.
MELTRIC Corporation’s complete line of industrial duty plugs and receptacles (including the world’s only UL and CSA switch rated plugs and receptacles) are manufactured in a state of the art facility in Franklin, Wisconsin. Corporate headquarters are located under the same roof as the manufacturing facility, allowing for efficient communication and coordination. As a result, many orders ship in less than 24 hours!
MELTRIC公司生產全系列工業用插頭和插座（包括世界唯一UL和CSA開關額定插頭和插座）是在威斯康星州富蘭克林制造。公司設計總部與生產設施位于同一地址，從而可以實現有效溝通和協調，許多訂單可以在不到24小時內發貨！
