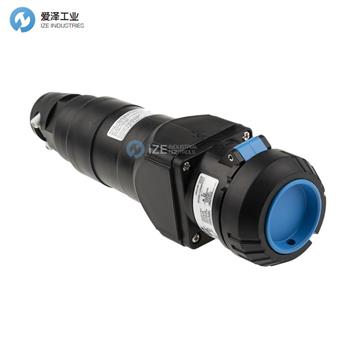

CEAG插座GHG5113306R0001技術規格
Attribute | Value |
Current Rating | 16A |
Plug/Socket | Socket |
Pole Format | 2P + E |
Voltage Rating | 250 V |
Mounting Type | Cable Mount |
Gender | Female, Male |
Body Orientation | Straight |
IP Rating | IP66 |
Hazardous Area Certification | ATEX |
Minimum Operating Temperature | -55°C |
Maximum Operating Temperature | +55°C |
CEAG插座GHG51系列介紹
CEAG GHG51 IEC 60309 Hazardous Area Pin and Sleeve Devices
Crouse-Hinds series CEAG GHG51 IEC 60309 pin and sleeve devices are a global product line that features the latest technological innovations to lead the way in IEC 60309 performance. Certified for Class I, Division 2 and Class I, Zone 1 & 2 hazardous areas, each Crouse-Hinds series IEC 60309 plug and socket has been carefully engineered to offer reliability, efficiency and added safety protection in demanding wet locations, particularly where harsh wash downs are a must.
GHG51 IEC 60309 hazardous area pin and sleeve devices are used where hazardous gases may be present in areas prone to water, hose down, corrosion, dust, dirt, vibration, hard use and abuse. The factory sealed interlock receptacle is dead front until the plug is fully engaged and rotated to activate the switch. The plug cannot be removed under load, and features a color-coded front housing for easy and accurate identification of voltages.
CEAG GHG51 IEC 60309 危險區域銷和套管設備
Crouse-Hinds 系列 CEAG GHG51 IEC 60309 插針和套筒器件是一個全球產品線，采用最新的技術創新，在 IEC 60309 性能方面處于領先地位。 每個 Crouse-Hinds 系列 IEC 60309 插頭和插座均經過I類 2區和I類1區和2區危險區域認證，均經過精心設計，可在要求嚴苛的潮濕環境中提供可靠性、效率和額外的安全保護，特別是在嚴酷清洗的場所 下降是必須的。
GHG51 IEC 60309 危險區域銷和套筒裝置用于可能存在危險氣體的區域，即容易發生水、軟管沖落、腐蝕、灰塵、污垢、振動、劇烈使用和濫用的區域。 工廠密封的互鎖插座處于正面狀態，直到插頭完全接合并旋轉以激活插座。 該插頭在負載情況下無法拔出，并且具有顏色編碼的前殼，可以輕松準確地識別電壓。
CEAG插座GHG系列其他常用型號：
CEAG GHG5114306R0001
CEAG GHG5114306R0002
CEAG GHG5114306R0102
CEAG GHG5114306R3001
CEAG GHG5114306R3101
CEAG GHG5114306R3003
CEAG GHG5114306R3103
CEAG GHG5118306R0001
CEAG GHG5118306R0101
CEAG GHG5113306R0001
CEAG GHG5117306R0001
