PARKER冷卻器PWO系列產品參數
Technical Specifications | |
Size: | B25T |
Product Type: | PWO B25THx60/1P-SC-S 2x1 1/4" INT HEX 2x1" INT HEX |
Maximum Cooling Capacity: | 82 (at oil flow 150 liter/min and ΔT 40°) kW |
Maximum Operating Pressure: | 31 barg |
Materials of Construction: | Stainless steel (AISI 316) & Copper |
Number of Elements: | 60 |
Flow Rate: | 150 L/min |
Port Size: | 2x1 1/4" INT HEX 2x1" INT HEX inch |
Maximum Operating Temperature: | 225 °C |
Application: | Industrial, mobile and marine |

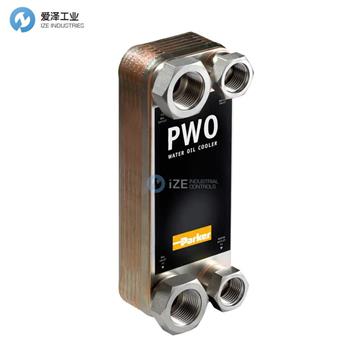

PARKER冷卻器B25THx60/1P-SC-S產品介紹
The PWO standard range of water oil coolers is available in a wide number of sizes and is in general available for immediate off-the-shelf delivery. The basic material is stainless steel (AISI316/304), vacuum brazed with pure copper. AISI 316 can be limited to the parts of the PWO that actually come in contact with fluid, such as the channel plates. PWO only requires small hold up volumes which equals lower cost and a more environmentallyfriendly solution. Low installation cost allows for oversizing for future requirements or peak loads.
PWO Standard Range of water oil coolers is available in a wide number of sizes and is in general available for immediate off-the-shelf delivery. The basic material is AISI 316 stainless steel, vacuum brazed with pure copper. The PWO requires only a small refrigerant volume resulting in lower cost and a more environmentally-friendly installation. Low installation cost allows for oversizing to accommodate for future increase in requirements or peak loads.
PWO標準系列的水油冷卻器有多種尺寸可供選擇，并且通?？闪⒓垂┴??；静牧鲜遣讳P鋼（AISI316 / 304），用純銅真空釬焊。AISI 316可以限于PWO實際與流體接觸的部分，例如通道板。PWO只需要很小的容納量，這等于更低的成本和更環保的解決方案。較低的安裝成本可滿足將來的需求或峰值負載的需求。
PWO標準系列的水油冷卻器有多種尺寸，通?？闪⒓垂┴??；静牧鲜茿ISI 316不銹鋼，真空釬焊純銅。PWO只需要少量的制冷劑，從而降低了成本并實現了更環保的安裝。較低的安裝成本使尺寸過大，以適應將來需求或峰值負載的增長。
PARKER冷卻器PWO系列其他常見型號：
PARKER B25THx100/1P-SC-S
PARKER B25THx30/1P-SC-S
PARKER B25THx40/1P-SC-S
PARKER B25THx60/1P-SC-S
PARKER B25THx70/1P-SC-S
PARKER B25THx80/1P-SC-S
PARKER COOLER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PARKER冷卻器B25THx60/1P-SC-S的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for PARKER products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.aalatcr.cn.
PARKER冷卻器PWO系列B25THx60/1P-SC-S產品介紹
