Output

0.750 hp

Phase

3

Synchronous Speed

3,000 rpm

Frequency

50.00 Hz

Voltage

400 V
230 V

Frame Material

Steel

Frame

56

XP Class and Group

NONE

XP Division

Not Applicable

Brand

Baldor-Reliance

Agency Approvals

CE
CSA
UR
WEEE

Ambient Temperature

40 °C

Auxillary Box

No Auxillary Box

Auxillary Box Lead Termination

None

Base Indicator

Rigid

Bearing Grease Type

POLYREX EM (-20F +300F)

Blower

None

Current

2.4 A @ 230 V
1.4 A @ 400 V

Design Code

B

Drip Cover

No Drip Cover

Duty Rating

CONT

Efficiency @ 100% Load

75.50%

Electrically Isolated Bearing

Not Electrically Isolated

Feedback Device

No feedback

Front Face Code

Standard

Front Shaft Indicator

None

Heater Indicator

No heater

High Voltage Full Load Amps

1.4 A

Insulation Class

F

Inverter Code

Not inverter

KVA Code

M

Lifting Lugs

No Lifting Lugs

Locked Bearing Indicator

No Locked Bearing

Motor Lead Exit

KO Box

Motor Lead Quantity/Wire Size

6 @ 18 AWG

Motor Lead Termination

Flying Leads

Motor Standards

NEMA

Motor Type

3420M

Number of Poles

2

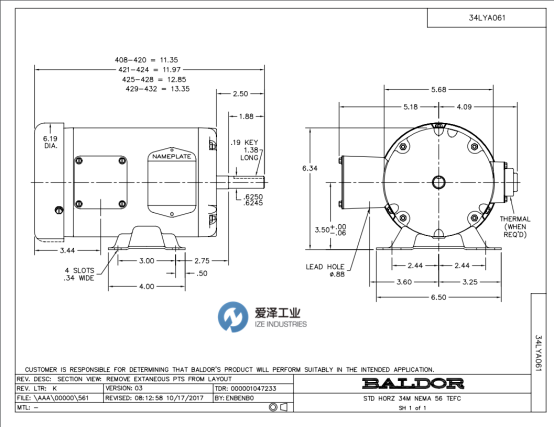

Overall Length

11.35 in

Power Factor

75

Product Family

General Purpose

Pulley End Bearing Type

Ball

Pulley Face Code

Standard

Pulley Shaft Indicator

Standard

Rodent Screen

None

RoHS Status

RoHS Compliant

Service Factor

1.25

Shaft Diameter

0.625 in

Shaft Extension Location

Pulley End

Shaft Ground Indicator

No Shaft Grounding

Shaft Rotation

Reversible

Shaft Slinger Indicator

No Slinger

Speed

2,850 rpm

Speed Code

Single Speed

Starting Method

Direct on line

Thermal Device - Bearing

None

Thermal Device - Winding

None

Vibration Sensor Indicator

No Vibration Sensor

Winding Thermal 1

None

Winding Thermal 2

None
